Description And Operation

DESCRIPTION

Courtesy of CHRYSLER GROUP, LLC

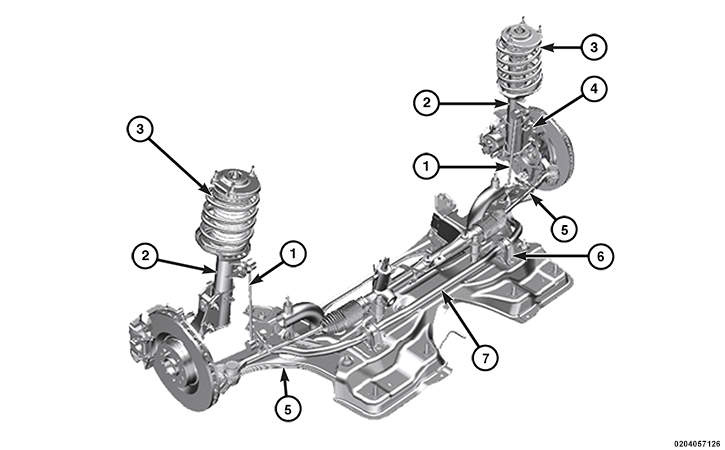

The Ram ProMaster is equipped with a front independent, McPherson strut suspension with a stabilizer bar. The front suspension is attached to a reinforced steel cross member and is equipped with the following:

1. Stabilizer bar links.
2. McPherson front struts.
3. Coil springs.
4. Cast iron steering knuckles.
5. Stamped steel lower control arms.
6. Stabilizer bar brackets.
7. Stabilizer bar.

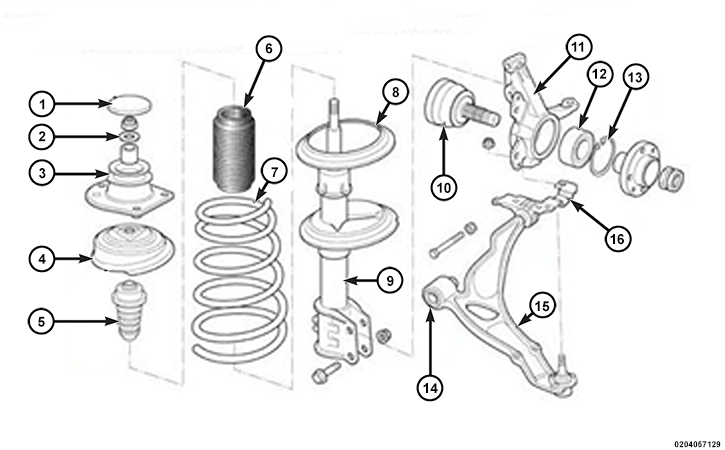

FRONT SUSPENSION EXPLODED VIEW

Courtesy of CHRYSLER GROUP, LLC

1. Protective cover
2. Washer
3. Gasket
4. Mounting Bracket
5. Buffer
6. Bellows
7. Coil Spring
8. Coil spring support plate
9. Strut
10. Halfshaft
11. Steering Knuckle
12. Hub Bearing
13. Circlip
14. Lower control arm bushing (part of control arm)
15. Lower control arm
16. Lower control arm support (part of control arm)

OPERATION

The Ram ProMaster is equipped with a front independent, McPherson strut suspension with a stabilizer bar. The front suspension is attached to a cross member and is equipped with the following:

• McPherson strut front suspension with large-diameter shocks.
• Tuned springs,
• Solid stabilizer bar
• Cross sectioned control arms.
• Reinforced steel cross member.
• Stabilizer bar links.
