Removal And Installation: Installation

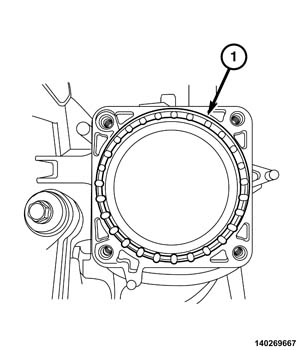

- If necessary, install a new throttle body gasket (1).CAUTION:
DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts or the intake manifold.

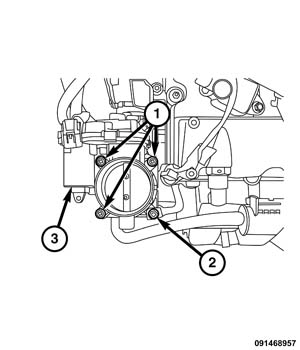

- Install the throttle body (3) to the intake manifold with three bolts (1) and stud bolt (2) finger tight.
CAUTION:
The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
- Tighten the bolts in criss cross pattern to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

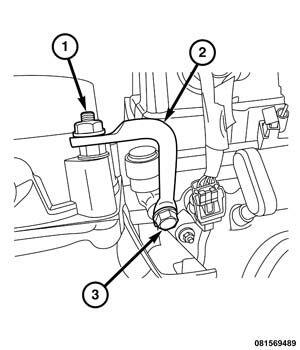

- Install the throttle body strut (2) with the nut (1) and bolt (3) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

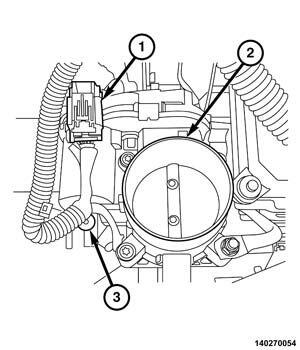

- Install wire harness retainer (3) to throttle body (2) and connect the throttle body wire harness connector (1).
- Install the clean air hose and engine cover. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- Use a scan tool to clear all Diagnostic Trouble Codes (DTC) and perform Electronic Throttle Control (ETC) relearn function.
