Removal And Installation: Installation

Courtesy of CHRYSLER GROUP, LLC

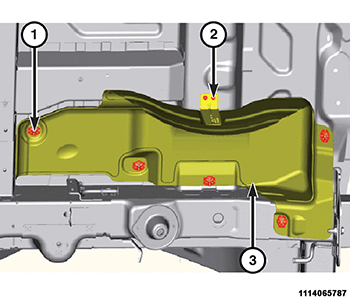

1. Install the exhaust heat shield (3) to the floor pan and tighten the fasteners (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
2. Install NEW  rivets (2) to the support bracket.
3. Install the muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

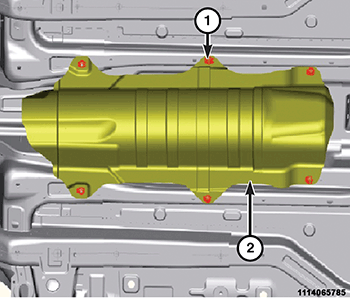

4. Install the middle exhaust heat shield (2) and tighten the fasteners (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
5. Install the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

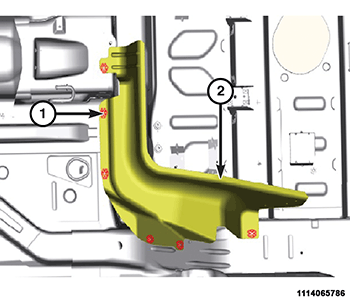

6. Install the front heat shield (2) to the floor pan and tighten the fasteners (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
7. Install the exhaust pipe. Refer to PIPE, EXHAUST, REMOVAL AND INSTALLATION .
8. Remove the support and lower the vehicle.
