Center, Power Distribution (PDC): Installation

Courtesy of CHRYSLER GROUP, LLC

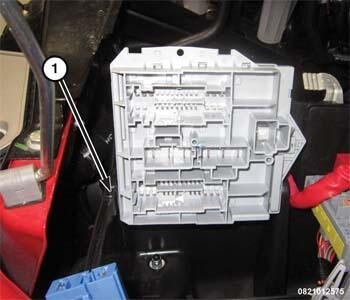

1. Install the Power Distribution Center (PDC) to the hinge pins (1). Gently pull out on the PDC housing, at the fit area, if needed to secure the PDC into place.

   Courtesy of CHRYSLER GROUP, LLC

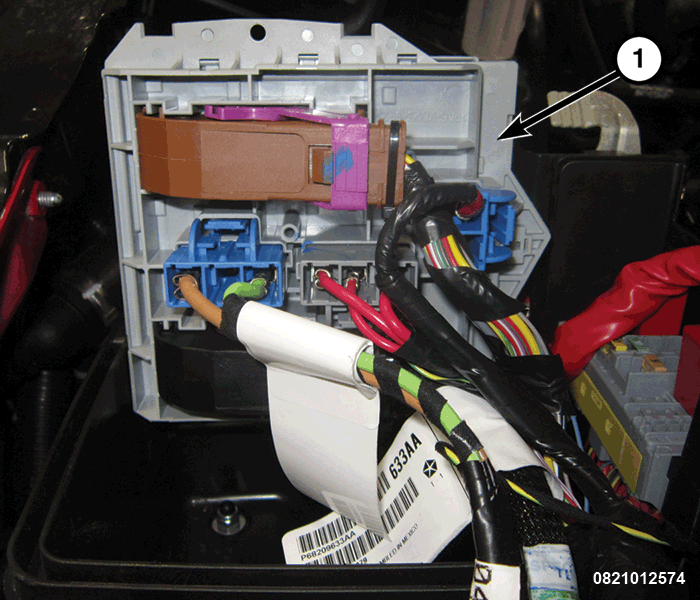

2. Install the electrical connectors from the harness to the back of the PDC (1). Verify there are no loose or unseated connectors before lowering the PDC to the closed position within the housing.

   Courtesy of CHRYSLER GROUP, LLC

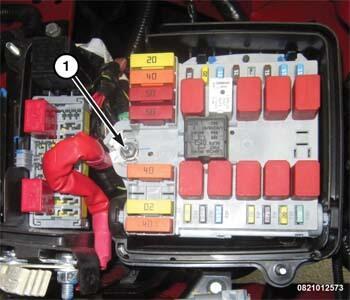

3. Connect the battery positive (+) to PDC cable and securely tighten the fastener (1).

   Courtesy of CHRYSLER GROUP, LLC

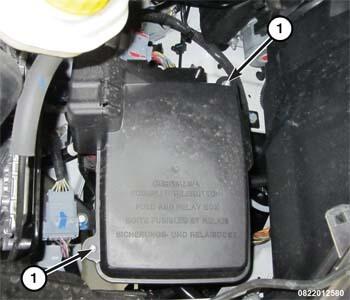

4. Place the cover in position and tighten the fasteners (1) securely.
5. Connect the negative battery cable.
