Cooling System: Engine: Thermostat: Installation: Coolant-Crossover: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Clean the gasket sealing surfaces.
2. Install a NEW  gasket onto the coolant crossover.
   NOTE:

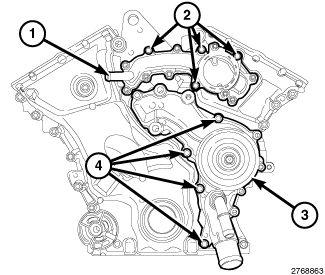

   The shorter M6 mounting bolts (2), bolt directly to the engine timing cover.

3. Install the coolant crossover and tighten the M6 bolts in a crisscross pattern to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
4. Install the heater supply hose to the coolant crossover (1).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the bracket and the engine mount (2). Refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

6. Install the thermostat housing. Refer to THERMOSTAT, INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

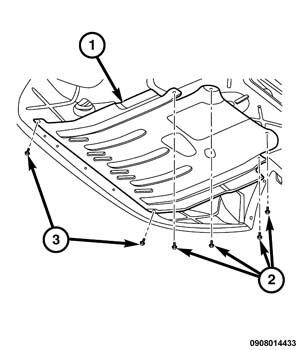

7. IF removed, install the belly pan (1) and securely tighten the fasteners (2, 3).
8. Fill the cooling system off. Refer to STANDARD PROCEDURE .
