Strut, Suspension, Assembly: Installation

Courtesy of CHRYSLER GROUP, LLC

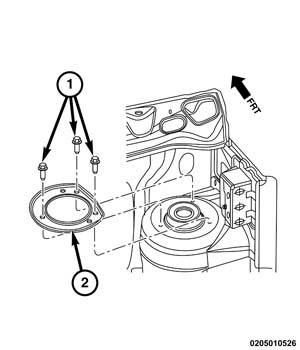

1. Install strut assembly into strut tower, aligning spacer (2) and starting the three bolts (1) by hand then tightening bolts to the proper torque specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
2. On the left side strut, install the body control module On the right side strut, install the glove box assembly. Refer to MODULE, BODY CONTROL (BCM), INSTALLATION or GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
3. Raise the vehicle.
4. Install the knuckle assembly. Refer to KNUCKLE, STEERING, INSTALLATION .
5. Install tire and wheel assembly. Refer to REMOVAL .
6. Lower the vehicle.
7. Perform wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
