Bushing(S), Lower Control Arm: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

When installing the bushing in the (special tool #10141-1, Sizer, Bushing) (3), use Mopar® rubber bushing installation lube Part No. 05010319AA or equivalent.

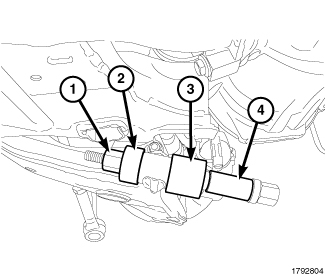

Install the bushing in the lower control arm using (special tool #8839, Screw Assembly) and (special tool #10141, Remover/Installer, LCA Bushing), along with adapters (special tool #10141-5, Remover/Installer) (2), (special tool #10141-1, Sizer, Bushing) (3), and (special tool #10141-3, Receiver, Installer) (4).
Install the lower control arm. Refer to ARM, LOWER CONTROL, INSTALLATION .
