Installation 3.0L Diesel Engine

Courtesy of CHRYSLER GROUP, LLC

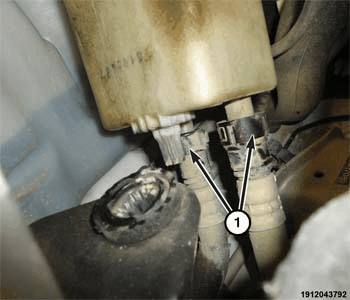

Connect the lines (1) to the power steering reservoir, then position the reservoir post into the retainer.

Courtesy of CHRYSLER GROUP, LLC

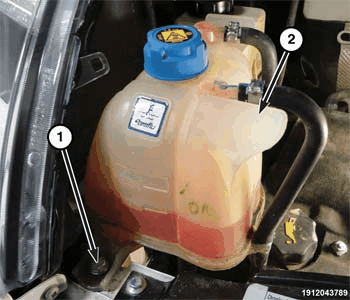

Position the coolant recovery bottle (2). Install the coolant recovery bottle bolt (1).

Courtesy of CHRYSLER GROUP, LLC

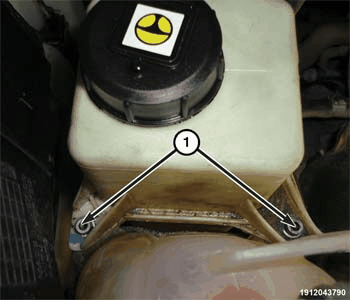

Install the power steering reservoir mounting screws (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

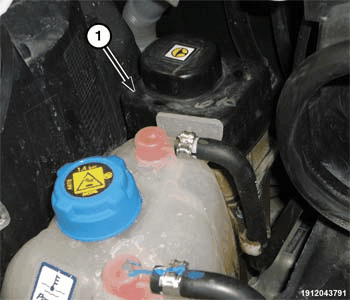

Install the power steering reservoir cover (1).
Fill and bleed the power steering system. Refer to STANDARD PROCEDURE .
Check for leaks.
