Air Cleaner: Installation

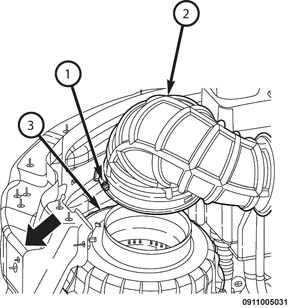

GC0160213Courtesy of CHRYSLER GROUP, LLC
  1. Install the air cleaner element into the air cleaner housing.
  2. Seat the cover (3) onto the housing and secure the three housing cover screws.
  3. Install the air intake hose (2).
