Tube, Fuel Tank Filler: Installation

Courtesy of CHRYSLER GROUP, LLC

1. Install the fuel fill tube (3) and gasket (4) into position.
2. Install hose clamp (2) and tighten.
3. Connect vent tube hose (5).

   Courtesy of CHRYSLER GROUP, LLC

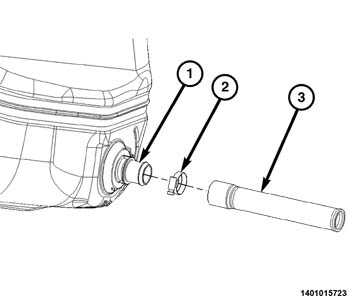

4. If removed, install the fuel filler hose (3) and tighten the clamps (2).

   Courtesy of CHRYSLER GROUP, LLC

5. Install the fuel filler tube shield (2). Install the clips (3)
6. Lower the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

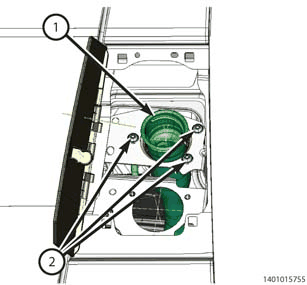

7. Install fuel fill tube screws. Tighten to 12 N.m (106 in. lbs.).

   Courtesy of CHRYSLER GROUP, LLC

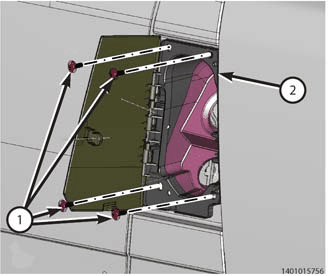

8. Install the fuel filler housing. Tighten to 12 N.m (106 in. lbs.).
9. Connect the negative battery cable.
