Muffler Heat Shield

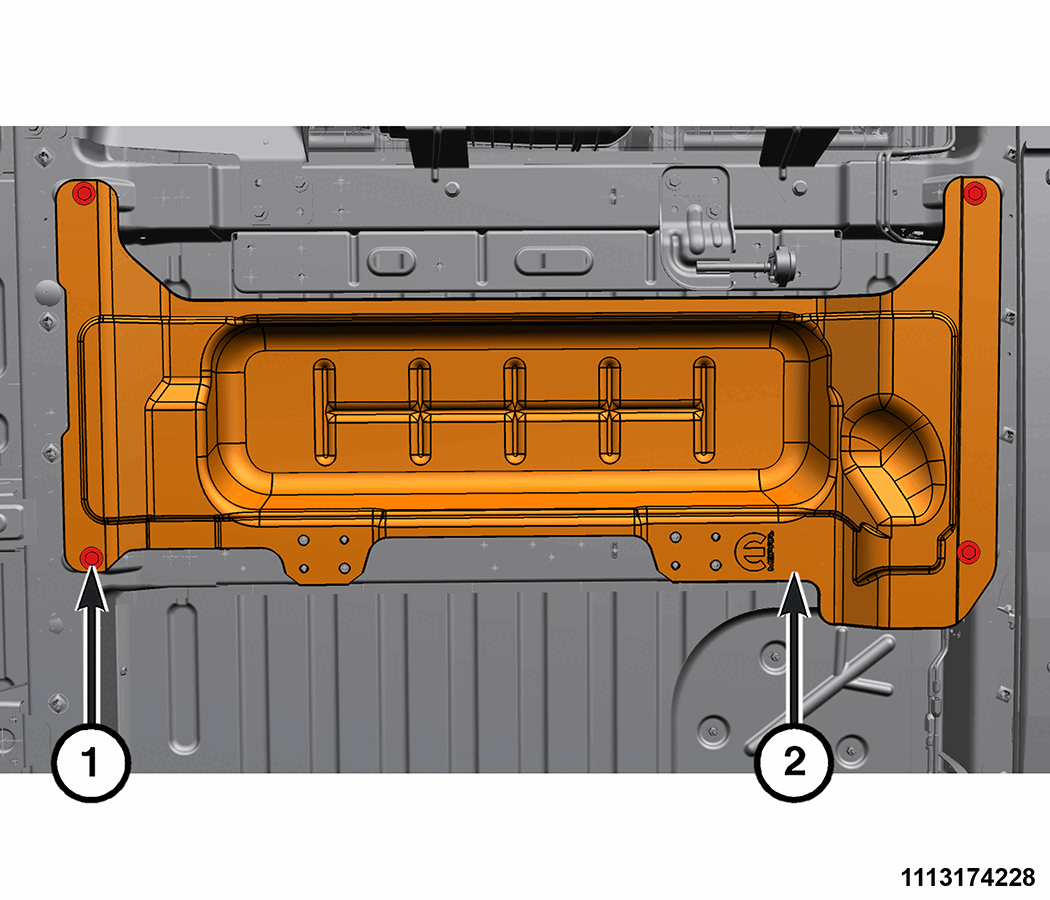

GC0199665Courtesy of CHRYSLER GROUP, LLC
  1. Using NEW  rivets (1), install the exhaust muffler heat shield (2).

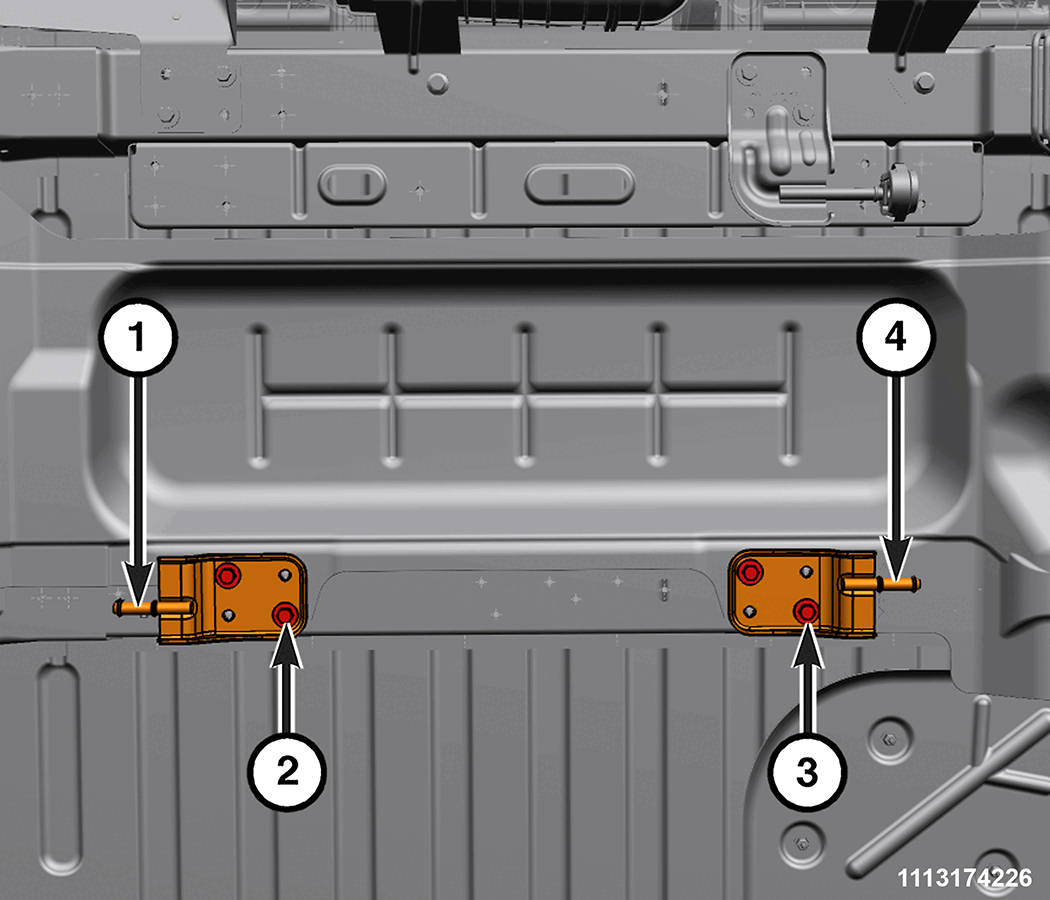

    GC0199649Courtesy of CHRYSLER GROUP, LLC
  2. Install the exhaust isolator bracket (5) and tighten the bolts (3) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the exhaust isolator bracket (1) and tighten the bolts (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the muffler. Refer to MUFFLER, EXHAUST, INSTALLATION .
