Front Heat Shield

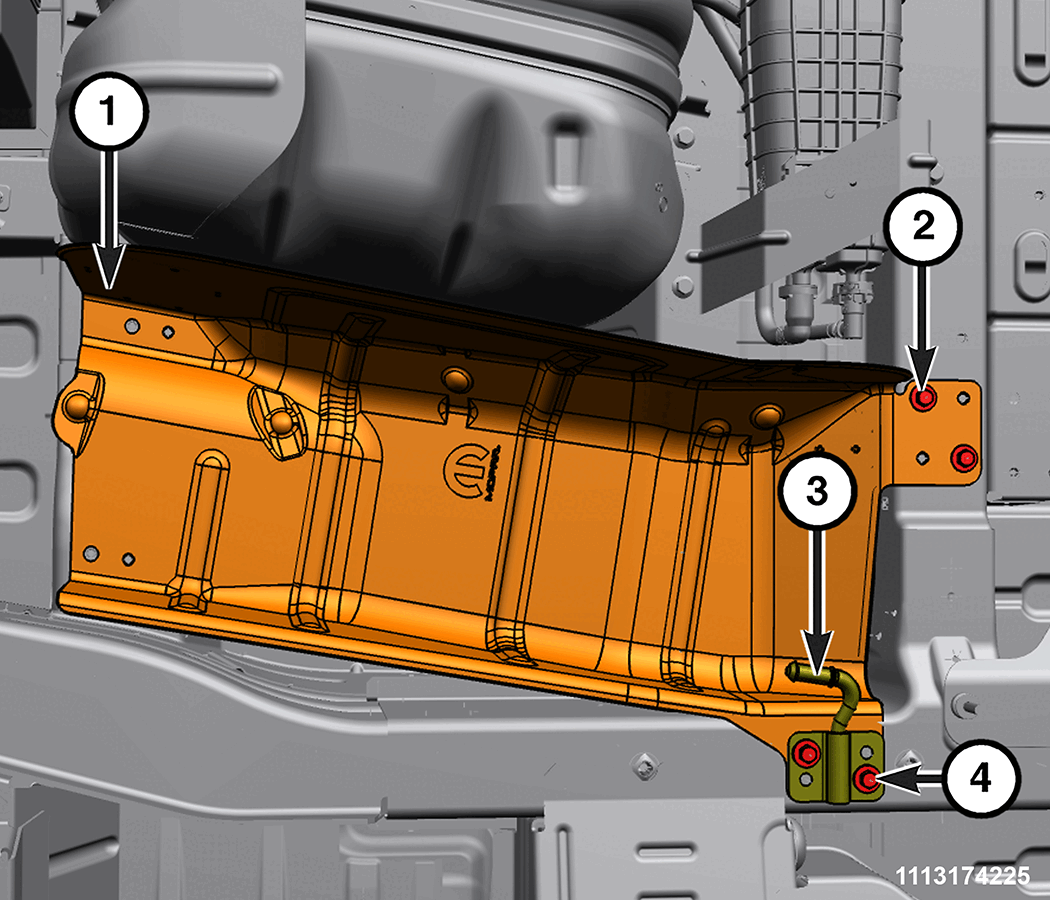

GC0199654Courtesy of CHRYSLER GROUP, LLC
  1. Install the front heat shield (1) and securely tighten the bolts (2).
  2. Install the exhaust isolator bracket (3) and securely tighten the bolts (2)

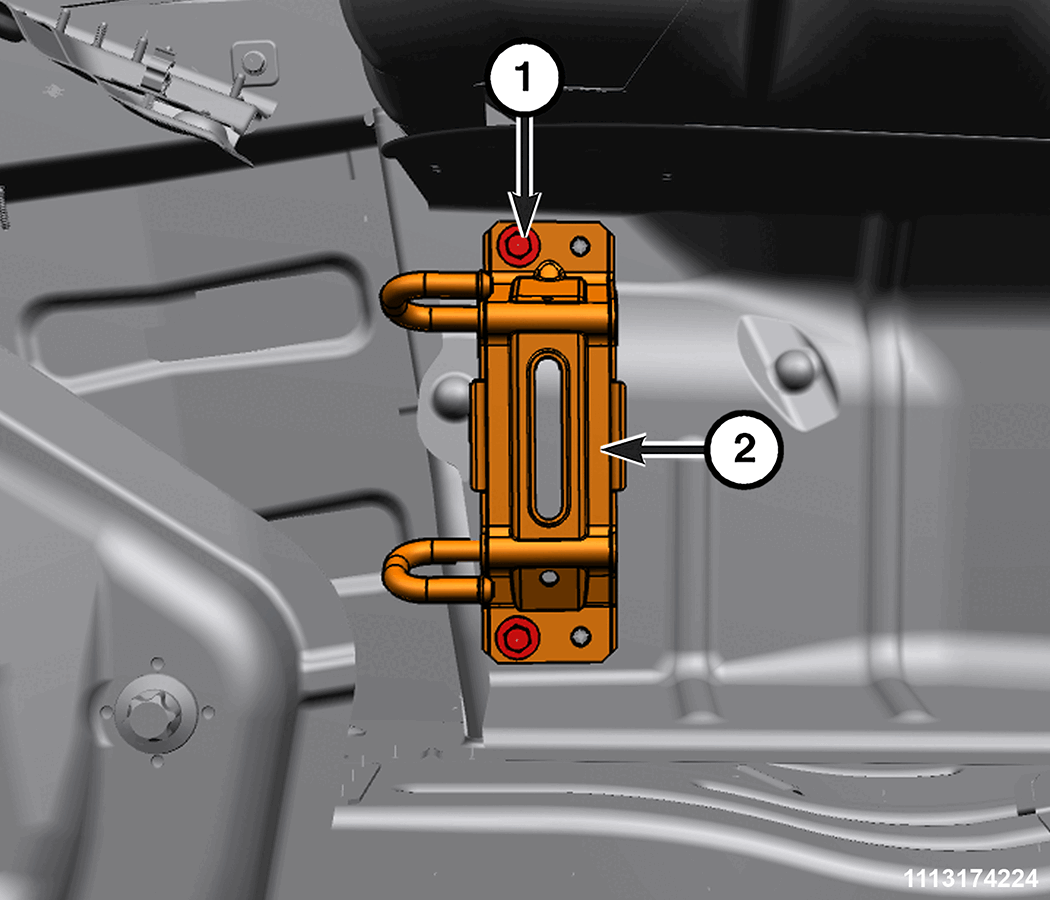

    GC0199660Courtesy of CHRYSLER GROUP, LLC
  3. Install the exhaust isolator bracket (2) and tighten the bolts (1).
  4. Install the exhaust resonator. Refer to RESONATOR, EXHAUST, INSTALLATION .
