Key, Transponder: Description

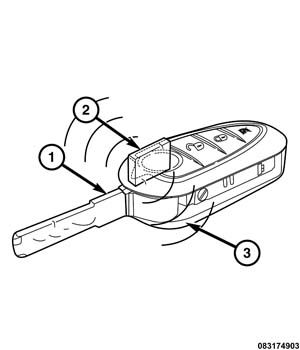

Each ignition key (1) used in the Sentry Key Immobilizer System (SKIS) has a transponder chip (2) included on the circuit board beneath the cover of the integral Remote Keyless Entry (RKE) transmitter (3). In addition to the ignition key being cut to match the ignition lock cylinder's mechanical coding, is the programming and operation of the RKE system. Each new Sentry Key has a unique transponder identification code that is permanently programmed into it by the manufacturer, and which must be programmed into the Body Control Module (BCM) to be recognized by the SKIS as a valid key.
The Sentry Key transponder cannot be adjusted or repaired. If ineffective or damaged, the entire key and RKE transmitter unit must be replaced.
