Module, Trailer Tow (TTM): Installation

WARNING: This page is about a different car, the 2022 RAM ProMaster 3500, 2022 RAM ProMaster 2500, and 2022 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

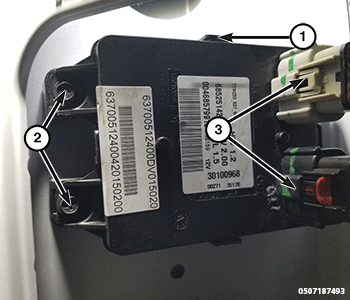

GC0204028Courtesy of CHRYSLER GROUP, LLC
  1. Position the TTM to the TTM bracket.
  2. Install the Trailer Tow Module (TTM) bolts (2) and tighten securely.
  3. Connect the TTM wire harness connectors (3).
  4. Position the TTM bracket to the D-pillar and securely engage the TTM bracket tab (1) to the D-pillar.

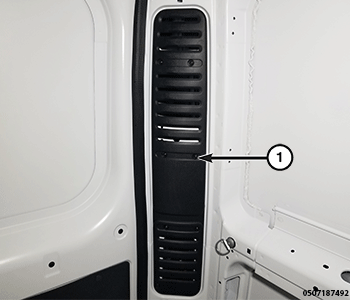

    GC0204024Courtesy of CHRYSLER GROUP, LLC
  5. Position the D-pillar trim to the D-pillar.
  6. Install the D-pillar trim screws (1) and tighten securely.
