Sensor, Manifold Absolute Pressure (Map): Removal

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the negative battery cable.

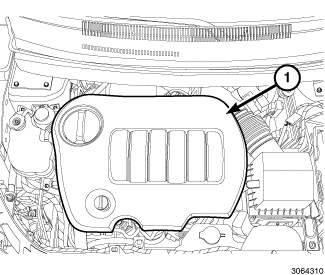

2. Remove the engine cover (1).

   Courtesy of CHRYSLER GROUP, LLC

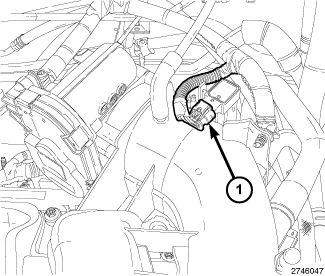

3. Disconnect the MAP sensor wire connector (1).

   Courtesy of CHRYSLER GROUP, LLC

4. Rotate the MAP sensor (1) 1/4 turn counterclockwise and pull the sensor straight up and out of the upper intake manifold.

   Courtesy of CHRYSLER GROUP, LLC

5. The MAP sensor O-ring (1) can be reused if not damaged.
