Tank, Fuel: Removal

WARNING:

The fuel system is under constant pressure even with engine off. Before servicing any part of the fuel system, the pressure must be released.

Remove fuel cap.
Release pressure in fuel system. Refer to FUEL DELIVERY, GAS, STANDARD PROCEDURE .

Courtesy of CHRYSLER GROUP, LLC
Remove the drivers seat inner frame cover (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the fuel pump access cover.

Courtesy of CHRYSLER GROUP, LLC
Disconnect fuel pump electrical connector (4).
Disconnect fuel line quick connect fittings (1) and evaporator hose (2).
Raise the vehicle.

Courtesy of CHRYSLER GROUP, LLC

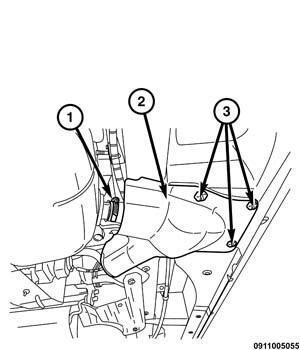

Remove the filler tube shield (2).

Courtesy of CHRYSLER GROUP, LLC
Remove hose clamp (2) and remove fuel fill hose (1) from fuel tank.
WARNING:
Support fuel tank with a transmission jack or equivalent. Use straps to secure the fuel tank to the jack. Failure to properly support and secure the fuel tank during removal may cause fuel to spill or fuel tank to fall from jack assembly.

Courtesy of CHRYSLER GROUP, LLC
Remove fuel tank strap bolts (1) and straps (3).
Lower the fuel tank.
If required, remove fuel pump module. Refer to MODULE, FUEL PUMP, REMOVAL .
Remove all fuel and vapor lines from fuel tank.
Transfer fuel into an approved fuel storage container.
