Outlet, Power, Universal Serial Bus: Installation

  1. Install the power USB outlet into floor console rear trim panel, making sure the outlet retainers are engaged.
    GC0184053Courtesy of CHRYSLER GROUP, LLC

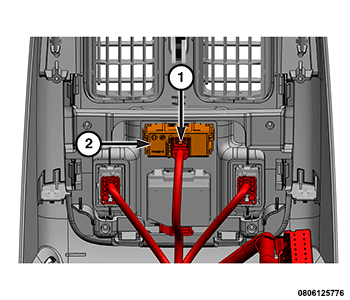

  2. Connect the wiring harness connector (1) into the power USB outlet (2).
    GC0184052Courtesy of CHRYSLER GROUP, LLC

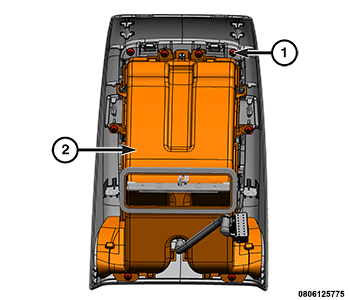

  3. Install the fasteners (1) securing the floor console rear duct (2) to the floor console rear trim panel.
  4. Connect electrical connectors and then install the floor console rear trim panel.
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
