Switch, Lumbar Control: Installation
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Driver seat shown. Passenger seat similar.
- Connect the electrical connector (3) to the power lumbar control switch (1).
- Position the lumbar control switch to the seat cushion side trim panel (5) and engage the four retaining tabs (2 and 4).

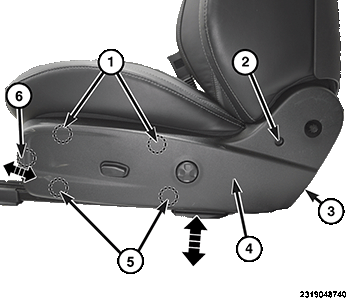

- Position the side shield (4) slightly forward and push down to engage the top retaining clips (1), then push rearward to engage the front retaining clip (6).
- Push at the bottom to engage the retaining clips (5).
- Install the screws (2) and (3). Tighten the screws securely.
- Fasten the lower straps for the seat back panel.
- Install the trim cover over the seat belt anchor.
- Connect the negative battery cable.
- Verify proper power lumbar support operation.
