Sensor, Manifold Absolute Pressure (Map): Installation: 5.7L
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Clean MAP sensor mounting hole at intake manifold.
- Check MAP sensor O-ring seal for cuts or tears.

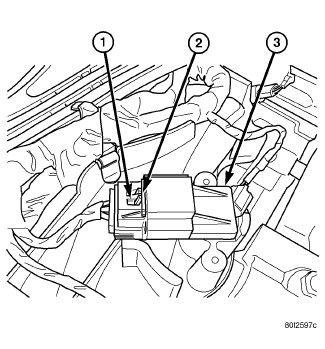

- Install and rotate the MAP sensor (3) 1/4 turn clockwise.
 Courtesy of CHRYSLER GROUP, LLC
|
- Connect and lock the MAP sensor wire harness connector (1).
