Sensor, Air Temperature, Inlet: Installation: 5.7L
WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

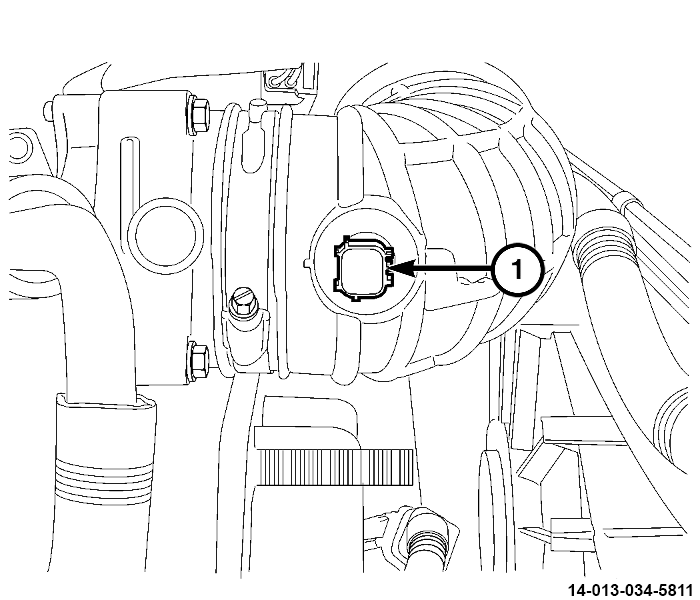

- Install Inlet Air Temperature (IAT) sensor (1) into rubber air hose.
- Rotate sensor (1) into position as shown in illustration. For proper system operation, sensor must be positioned as shown in illustration.
- Connect IAT sensor wire harness connector (1).
- Install the engine cover.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
