Section 16 (Rear Half Shaft): Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Never grasp halfshaft assembly by the inner or outer boots. Doing so may cause the boot to pucker or crease, reducing the service life of the boot and joint. Avoid over angulating or stroking the C/V joints when handling the halfshaft.

NOTE:

The halfshaft inner and outer boots are not serviced separately. Boot replacement requires entire halfshaft assembly replacement.

NOTE:

Always install a NEW hub nut. The original hub nut is one-time use only and should be discarded when removed.

Courtesy of CHRYSLER GROUP, LLC

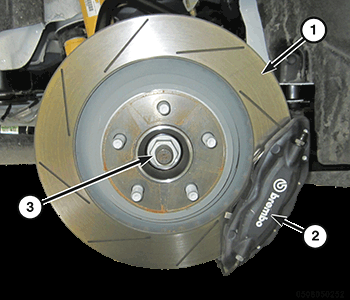

Install the NEW hub nut (3) hand tight.
Install NEW circlip(s), on the halfshaft(s).

Courtesy of CHRYSLER GROUP, LLC

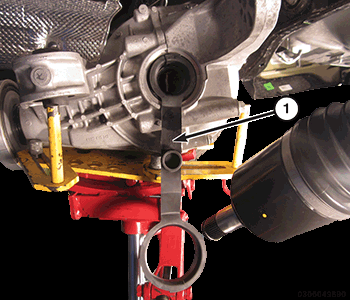

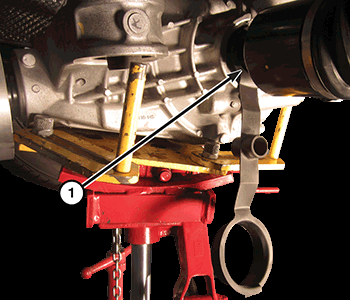

Install the (special tool #10270, Protector, Half Shaft, Drive) (1) in the rear axle.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Use care when installing halfshaft to axle assembly. The halfshaft installation angle should be minimized to avoid damage to seal upon installation.
Apply a light film of axle lubricant to the machined halfshaft surface. With the (special tool #10270, Protector, Half Shaft, Drive) (1) installed and the aid of an assistant, shift the rear axle assembly in one direction and compress one halfshaft inner joint as much as possible while installing the other halfshaft (1).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Use care not to damage the axle seal or the seal dust cover.
Remove the (special tool #10270, Protector, Half Shaft, Drive) (1) and fully install the halfshaft in the rear axle. Verify proper installation by pulling outward on the joint by hand.
Raise the rear axle into position.

Courtesy of CHRYSLER GROUP, LLC

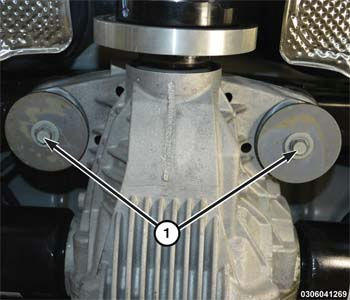

Install the NEW rear axle forward mount isolator bolts (1) hand tight.

Courtesy of CHRYSLER GROUP, LLC

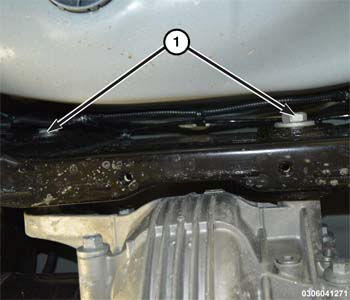

Install the rear axle to crossmember bolts (1) hand tight.
Tighten the NEW rear axle forward mount isolator bolts and the rear axle to crossmember bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Verify halfshafts are fully engaged in the axle assembly.

Courtesy of CHRYSLER GROUP, LLC

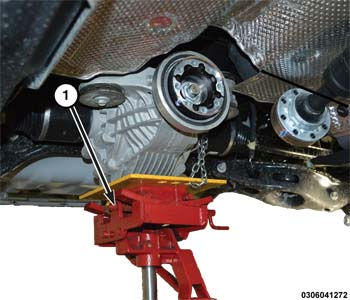

Remove the transmission jack (1).

Courtesy of CHRYSLER GROUP, LLC
If used, remove screw-type under-hoist jack stand (1).

Courtesy of CHRYSLER GROUP, LLC

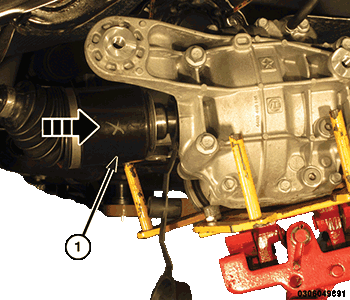

Install the driveshaft using the alignment marks (1) made during removal.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Driveshaft bolts must be replaced with NEW . If NEW bolts are not available clean the old bolts and apply Mopar® Lock and Seal Adhesive or equivalent.
Install the driveshaft washers (2) and NEW bolts (1) and tighten in a star pattern to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Tighten the NEW hub nut (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
NOTE:
If significant fluid loss occurred while installing the rear axle proceed to step 16.

If there was no fluid loss proceed to step 20.

Courtesy of CHRYSLER GROUP, LLC

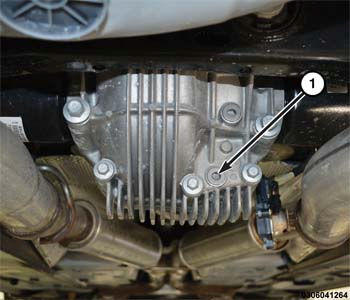

Remove rear axle drain plug (1) and drain the rear axle fluid.
Install the rear axle drain plug (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

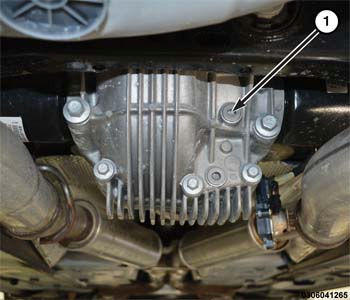

Remove the rear axle fill plug (1) and fill the rear axle with the specified fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
Install the rear axle fill plug (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the tire and wheel assembly. Refer to INSTALLATION .
