Link, Compression: Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

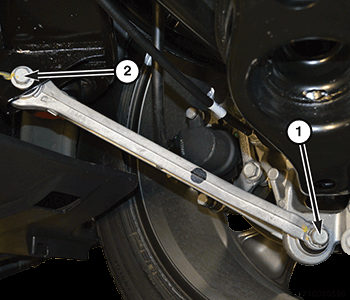

  1. Position the compression link in the vehicle.
    GC0170389Courtesy of CHRYSLER GROUP, LLC
  2. Install the compression link to crossmember bolt (2). Do not tighten the bolt at this time.
  3. Install the compression link to knuckle bolt (1). Do not tighten the bolt at this time.

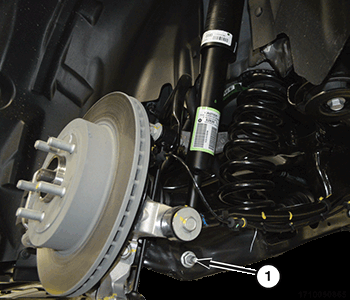

    GC0170329Courtesy of CHRYSLER GROUP, LLC
  4. Install the lower shock absorber bolt (1). Do not tighten the bolt at this time.
  5. Install the tire and wheel assembly. Refer to INSTALLATION .
  6. Remove the support and lower the vehicle.
  7. Position the vehicle on an alignment rack/drive-on lift. Position the vehicle to access the compression link fasteners.
  8. Tighten the compression link bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  9. Tighten the lower shock absorber bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  10. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
