Module, Park Assist (PAM): Installation

WARNING: This page is about a different car, the 2021 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

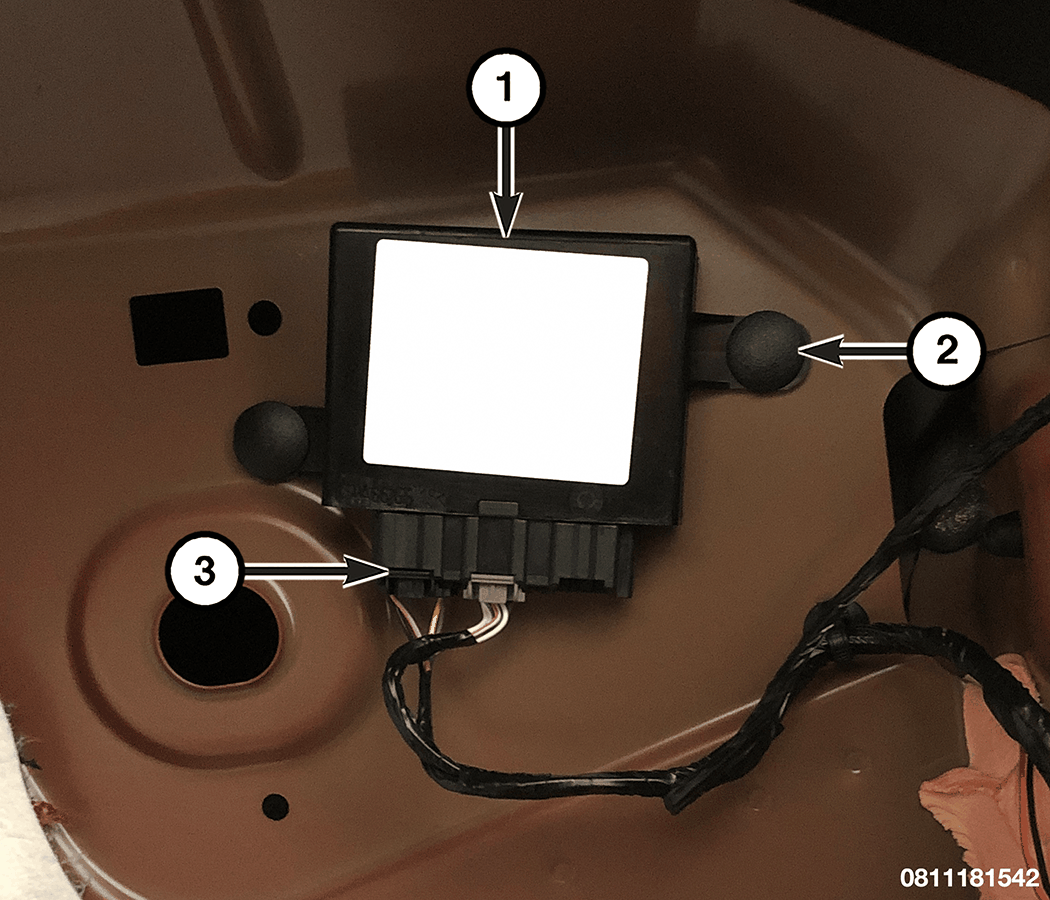

GC0200206Courtesy of CHRYSLER GROUP, LLC
  1. Position the Park Assist Module (PAM) (1) to the right quarter inner panel above and behind the right rear wheel house.
  2. Install the retainers (2) that secure the PAM to the right quarter inner panel.
  3. Connect the wire harness connectors (3) to the PAM.
  4. Install the trim onto the right quarter inner panel. Refer to PANEL, TRUNK TRIM, REAR, INSTALLATION .
  5. Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
