Pump, Transmission Oil: Assembly

Courtesy of CHRYSLER GROUP, LLC

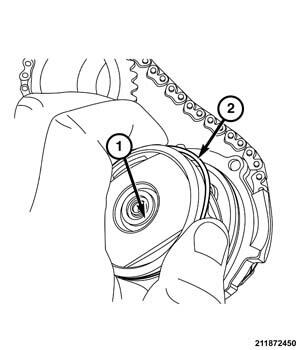

Install the oil pump seal (1).
Install the oil pump O-ring (2).

Courtesy of CHRYSLER GROUP, LLC

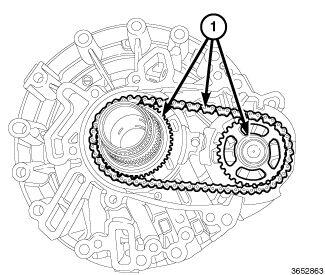

Carefully install the drive sprocket, chain and pump body (1) as an assembly into the oil pump housing.

Courtesy of CHRYSLER GROUP, LLC

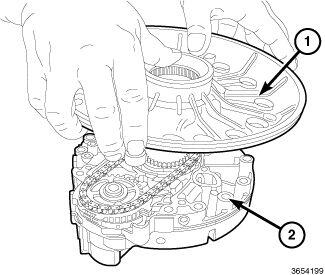

Set the pump cover (1) onto the oil pump housing (2).

Courtesy of CHRYSLER GROUP, LLC
Install NEW oil pump housing bolts (1 and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Install NEW oil pump housing inner (1) and outer (2) O-rings.

Courtesy of CHRYSLER GROUP, LLC
Install a NEW clutch A piston seal (2) and install the clutch A piston (1).

Courtesy of CHRYSLER GROUP, LLC
Install the plate and clutch A belleville spring (1).

Courtesy of CHRYSLER GROUP, LLC
Position the oil pump housing assembly (4) in a suitable arbor press.
Using (special tool #8285, Compressor, Spring) (1), press on the fingers of the piston belleville spring to remove tension, and install the two halves of the split retainer ring (2).

Courtesy of CHRYSLER GROUP, LLC
Install the hub (3).
Install the clutches and spacers (4).
Install the snap ring (2).
Install the outer ring (1) (below the clutch B piston).

Courtesy of CHRYSLER GROUP, LLC
Position the clutch B piston alignment tab above the notch (2) and install the clutch B piston (1) on the assembly.
