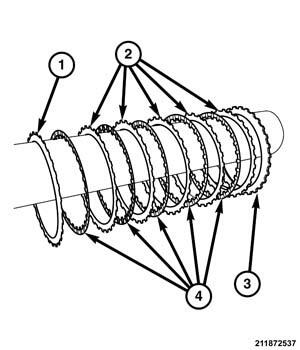

Clutch, B: Assembly

Courtesy of CHRYSLER GROUP, LLC

1 - Wave Plate

2 - Steel Plate

3 - Backing Plate

4 - Friction Plate

NOTE:

If clutch discs are being replaced, soak the discs in 8HP transmission fluid before reassembly.

Position the input/output and the P4 annulus drum assembly on the (special tool #8925-3, Assembly, Press Fixture) and the (special tool #1130, Splitter, Bearing/Gear).

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

Courtesy of CHRYSLER GROUP, LLC

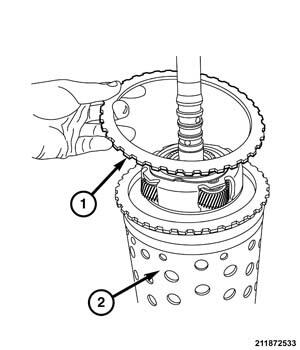

Install the clutch B backing plate (1) onto the input/output shaft.

Courtesy of CHRYSLER GROUP, LLC

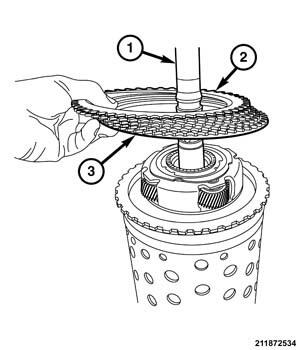

Install the clutch B friction (3) and steel plates (2).

Courtesy of CHRYSLER GROUP, LLC

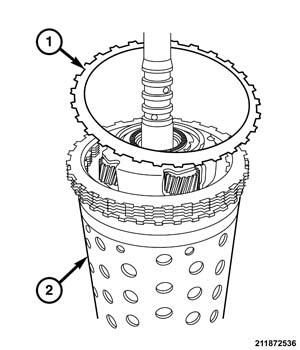

Install the clutch B wave plate (1).

Courtesy of CHRYSLER GROUP, LLC

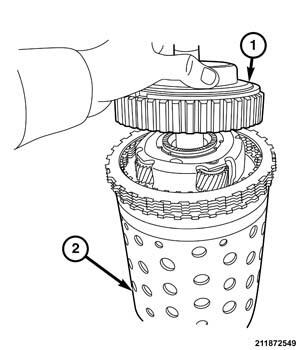

Install the P1 annulus (1) onto the input/output shaft.

Courtesy of CHRYSLER GROUP, LLC

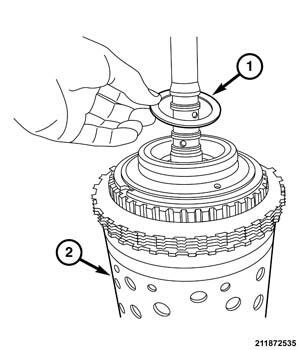

Install the correct selectable shim (1) onto the P1 annulus.
