Technical Specifications: Specifications
NOTE:
Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.
VEHICLE PREPARATION
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

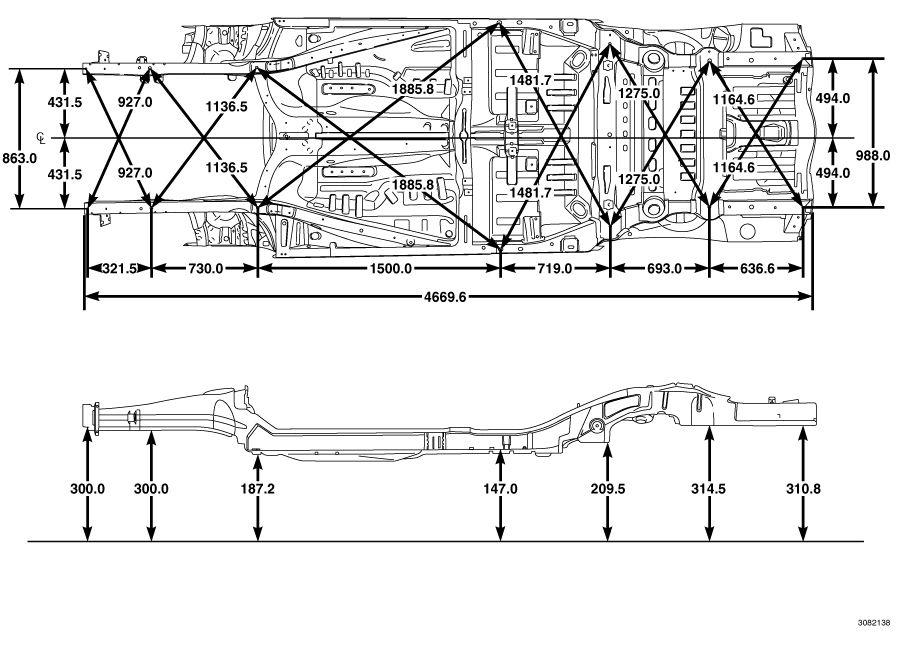

| Under Body Dimensions | Refer to Fig 1. |
| Under Hood (Quick Reference) | Refer to Fig 2. |
| Under Hood | Refer to Fig 3. |
