Removal And Installation

Courtesy of CHRYSLER GROUP, LLC

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the exhaust. For 6.2L Refer to REMOVAL , or for all other engines refer to MUFFLER, EXHAUST, REMOVAL .

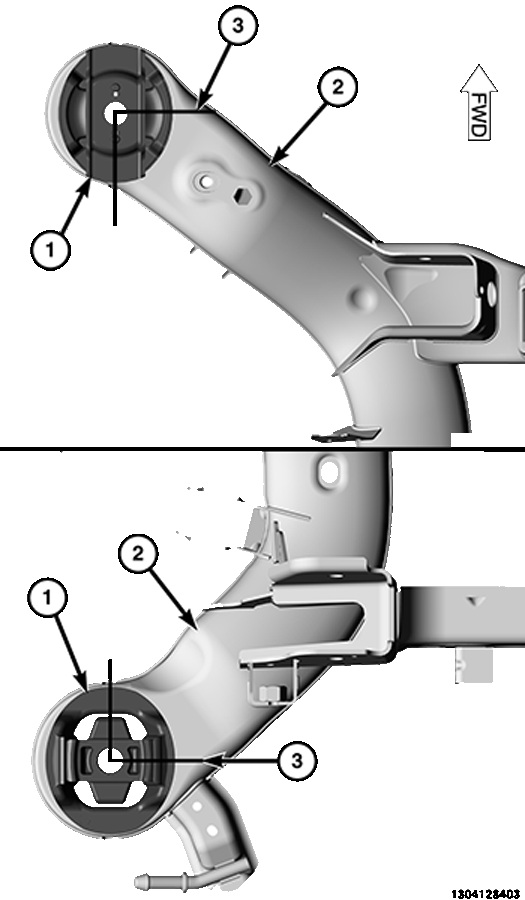

3. As an installation reference, carefully mark location of isolator (1) requiring removal on crossmember (2) (around isolator can flange) using a marker or crayon.

   Do not use a scratch awl to mark location.

   Courtesy of CHRYSLER GROUP, LLC

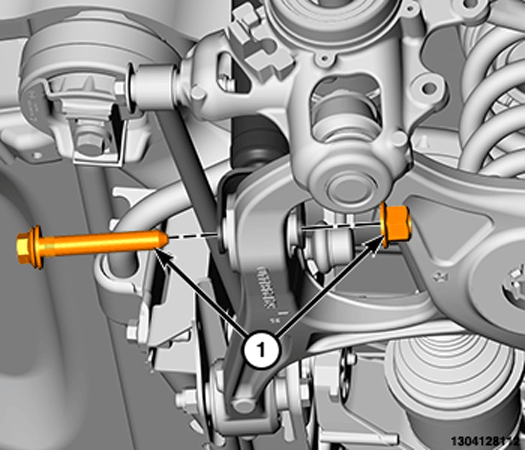

4. Support the rear control arm with a suitable device and remove the lower shock bolt (1).

   Courtesy of CHRYSLER GROUP, LLC

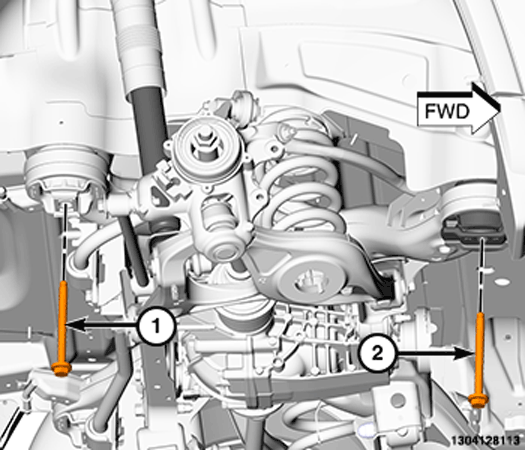

5. Remove the bolts (1, 2) securing the crossmember on the side of the vehicle being worked on.

   Courtesy of CHRYSLER GROUP, LLC

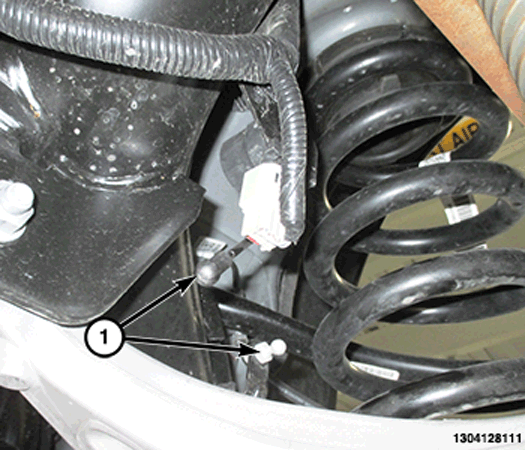

6. Disconnect the ride height sensor (1), if necessary.

   Courtesy of CHRYSLER GROUP, LLC

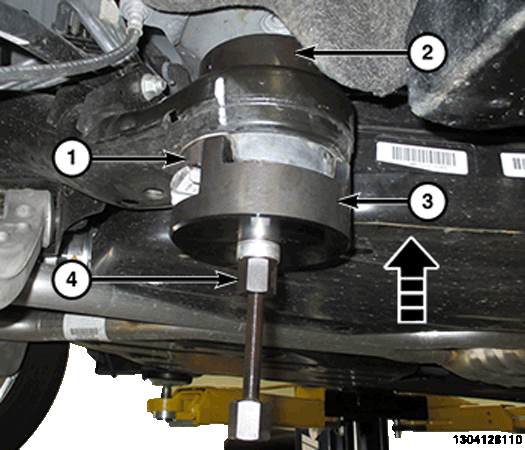

7. Lower the crossmember as necessary and assemble tools over isolator as shown using tool kits
   • Isolator (1)
   • (special tool #2025900170, Kit, Bushing Installer-Remover) (2 and 3)
   • (special tool #2026900170, Kit, Pressing Tool)

   and.

   NOTE:

   Prior to using special tools, lubricate Kit, Pressing Tool 2026900170 (1) threads to provide ease of use and promote tool longevity.

   NOTE:

   When installing thrust bearing, be sure to place hardened side toward bolt head.

8. Tighten the screw assembly, pressing the isolator out of the crossmember and remove the tools with the isolator.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position isolator (1) on crossmember (2) isolator bore aligning isolator can flange with reference marks applied during removal.

   Courtesy of CHRYSLER GROUP, LLC

   1 - Isolator

   2 - 2025904170 Receiver, Bushing Installation

   3 - 2025903170 Installer, Bushing

   4 - 2026900170 Kit, Pressing Tool

2. Prior to using special tools, lubricate (special tool #2026900170, Kit, Pressing Tool) (1) threads to provide ease of use and promote tool longevity.
   NOTE:

   When installing thrust bearing, be sure to place hardened side toward bolt head.

   NOTE:

   A mixture of soap and water may be used to aid installation of the isolator.

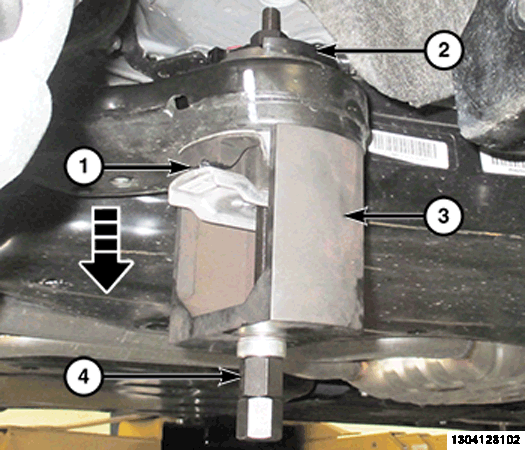

3. Assemble tools over isolator as shown using tool kits
   • Isolator (1)
   • (special tool #2025900170, Kit, Bushing Installer-Remover)

     (2 and 3)

   • (special tool #2026900170, Kit, Pressing Tool) (4)
4. Tighten the screw assembly Kit, Pressing Tool 2026900170, pressing the isolator into crossmember. Install isolator until isolator can flange contacts surface of crossmember.
5. Remove tools.

   Courtesy of CHRYSLER GROUP, LLC

6. Connect the ride height sensor (1), if necessary.

   Courtesy of CHRYSLER GROUP, LLC

7. Install the bolts (1, 2) securing the crossmember on the side of the vehicle being worked on and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

   Courtesy of CHRYSLER GROUP, LLC

8. Support the rear control arm with a suitable device and Install the lower shock bolt (1).
9. Tighten the bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
10. Install the exhaust. For 6.2L Refer to INSTALLATION , or for all other engines refer to MUFFLER, EXHAUST, INSTALLATION .
