Antenna, Remote Start: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Left side shown. Right side similar.

Install the remote start receiver (1).
Route the remote start antenna and clip in place with the provided fasteners (2).
Position the quarter trim panel back into the vehicle.
NOTE:
Right side shown, left side similar.

Courtesy of CHRYSLER GROUP, LLC
Position the front locating pin into the body and seat the push pin near the location pin fully.
Seat the clip at the top of the trim panel into the C-pillar first.
For the right side, seat the three front push pins.
For the left side, seat the two front push pins.
Seat the push pin at the rear of the quarter glass.

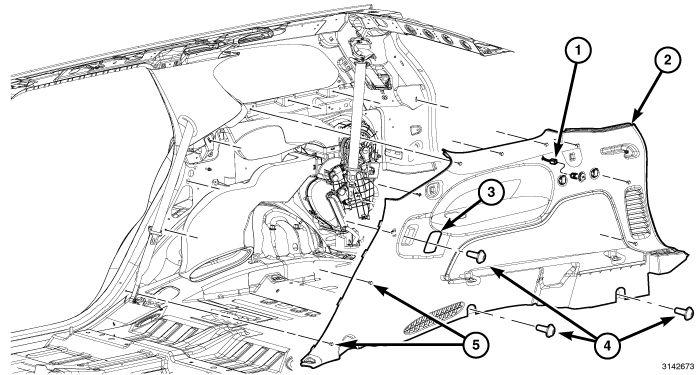

For the right side, connect the power outlet electrical connector (1).
For the left side, connect the flash light electrical connector and the power liftgate switch, if equipped.
Position the rear locating pin into the body and seat the remaining push pins (5).
Install the screws (4).
NOTE:
The screw cap (3) must be DISCARDED when it is removed and replaced with a NEW one.
Install a NEW screw cap (3).

Courtesy of CHRYSLER GROUP, LLC
Position the door weatherstrip (1) and seat fully.
Install the rear door scuff plate. Refer to PLATE, SCUFF, LIFTGATE, INSTALLATION .
Install the D-pillar trim. Refer to PANEL, D-PILLAR TRIM, INSTALLATION .
Install the load floor Refer to LOAD FLOOR, FOOTWELL, INSTALLATION .
