Pump, Water: Installation: 6.2L

GC0170372Courtesy of CHRYSLER GROUP, LLC
  1. Clean and inspect the mating surfaces of the timing chain cover (1) and the water pump.

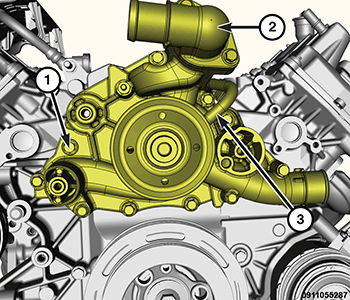

    GC0170392Courtesy of CHRYSLER GROUP, LLC
  2. Install the water pump and tighten the bolts (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the lower radiator hose.
  4. Install the upper radiator hose to the thermostat housing (2).
    GC0170458Courtesy of CHRYSLER GROUP, LLC
  5. Install the belt tensioner assembly (2) and tighten the bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0170066Courtesy of CHRYSLER GROUP, LLC
  6. Install the idler pulley (1) and tighten the bolt (2) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0144611Courtesy of CHRYSLER GROUP, LLC
  7. Connect the temperature sensor wire hire harness connector (2).
  8. Using a NEW  O-ring seal, install the heater tube (3) and tighten the bolt (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  9. Install the supercharger. Refer to SUPERCHARGER, INSTALLATION .
  10. Connect the negative battery cable.
  11. Evacuate air and refill the cooling system. Refer to STANDARD PROCEDURE .
  12. Check the cooling system for leaks. Refer to DIAGNOSIS AND TESTING .
