Charging System (Service Information): Generator: Removal: 6.2L

WARNING:

Disconnect the negative battery cable before removing the battery output wire (B+ wire) from the generator. Failure to do so can result in injury or damage the electrical system.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
NOTE:
It is not necessary to completely remove the serpentine belts
Remove the supercharger tensioner and bracket. Refer to TENSIONER, DRIVE BELT, REMOVAL .
Release and set aside the accessory drive serpentine belt. Refer to BELT, SERPENTINE, REMOVAL .
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the belly pan. Refer to BELLY PAN, ENGINE, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Depress the field wire connector tab (1) at the rear of the generator and disconnect the field wire harness connector.
Remove the insulator cover (2) from B+ output terminal at the rear of the generator.
Remove the B+ terminal retaining nut (3) at the rear of the generator and remove the B+ terminal.
Unsnap the plastic insulator cap from B+ output terminal at the rear of the generator.
Remove the B+ terminal retaining nut at the rear of the generator and remove the B+ terminal.
Depress the field wire connector tab at the rear of the generator and disconnect the field wire connector.

Courtesy of CHRYSLER GROUP, LLC
Remove the lower generator retaining bolts (1).
Loosen the generator support bracket at the engine mount.
Remove the support and lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Remove the upper generator retaining bolts (1).

Courtesy of CHRYSLER GROUP, LLC

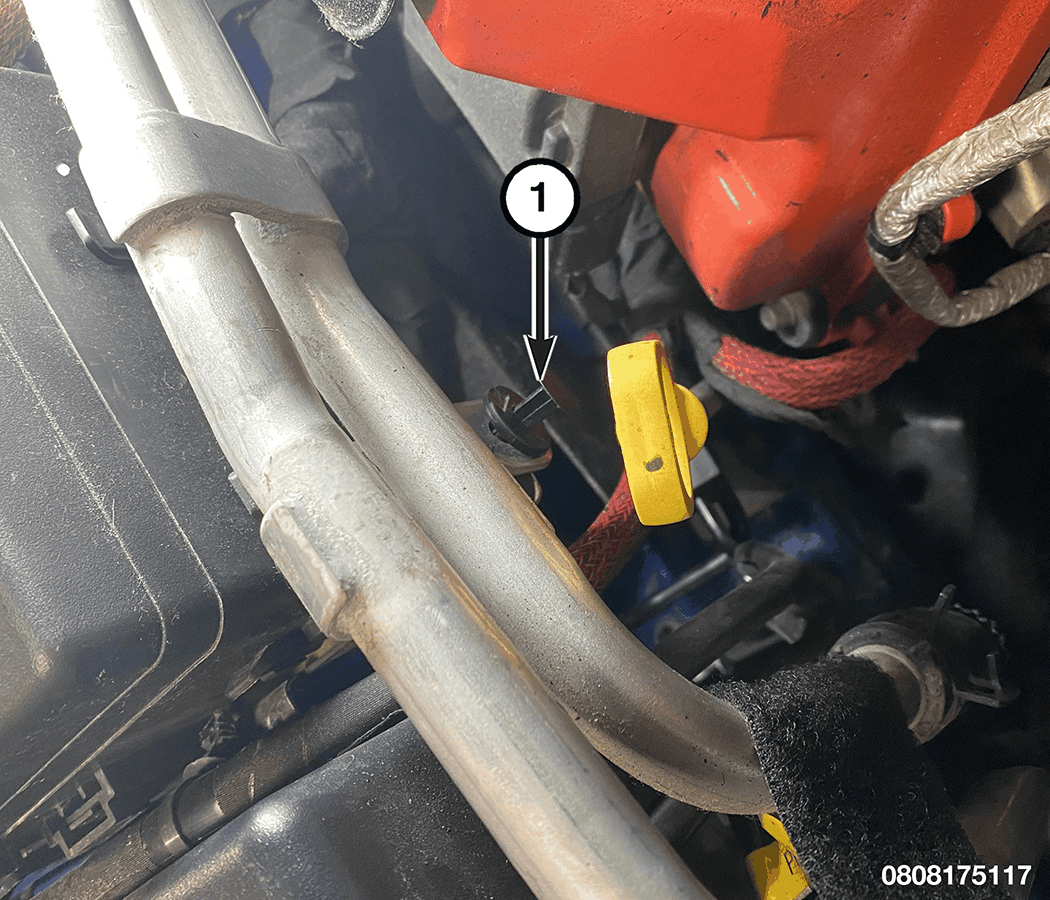

Remove the push pin for the supercharger cooling lines.

Courtesy of CHRYSLER GROUP, LLC

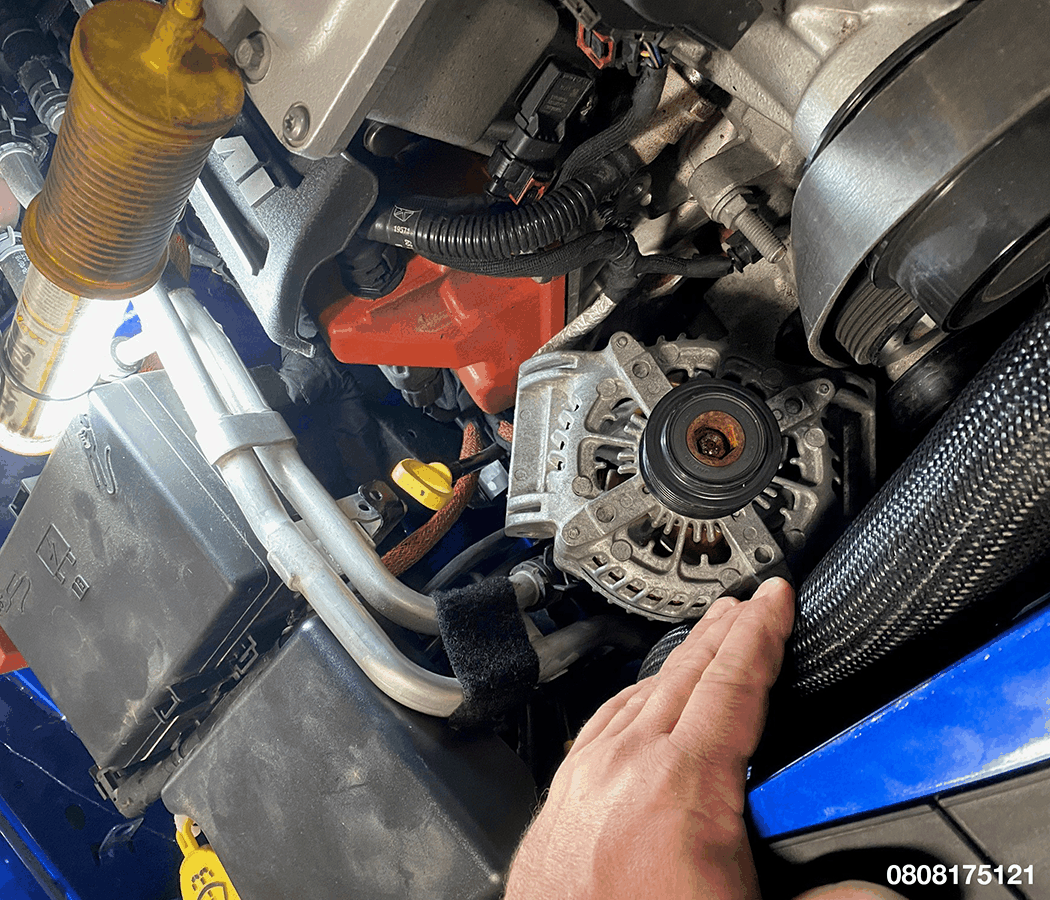

Carefully rotate the generator and remove it from the vehicle.
