Removal And Installation: Installation
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

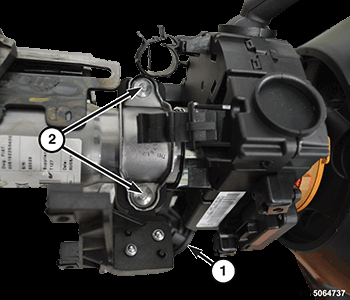

- Position the ignition switch (1) onto the steering column.
- Install two new torque-to-yield bolts (2). Continue to tighten each bolt until the head shears off.
- Place the actuator in the lock cylinder housing to the RUN position (if not already there).
- Insert the key (2) into the key cylinder (3) and turn the key cylinder to the RUN position.
- Align the retaining tab on the key cylinder with the slot (1) in the top of the lock cylinder housing.
- Slide the key cylinder into the lock cylinder housing until the key cylinder retaining tab locks the cylinder into place.
- Rotate the key back and forth (OFF to START), then remove and reinstall it, making sure the key cylinder and lock cylinder housing operate properly.

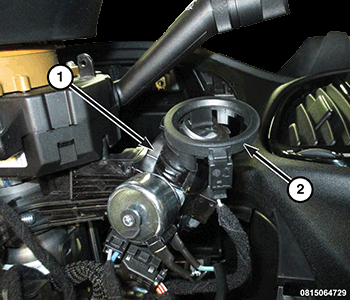

- Install the security ring (2) to the ignition switch (1).

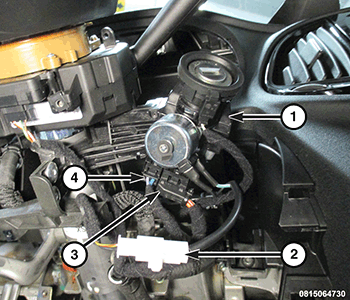

- Connect the electrical connectors (2, 3 and 4) to the ignition switch (1).
- Install the steering column switch and clockspring assembly to the steering column. Refer to CLOCKSPRING, REMOVAL AND INSTALLATION .
- Install the steering wheel to the steering column. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
