Automatic Transmission (Service Information)
>>

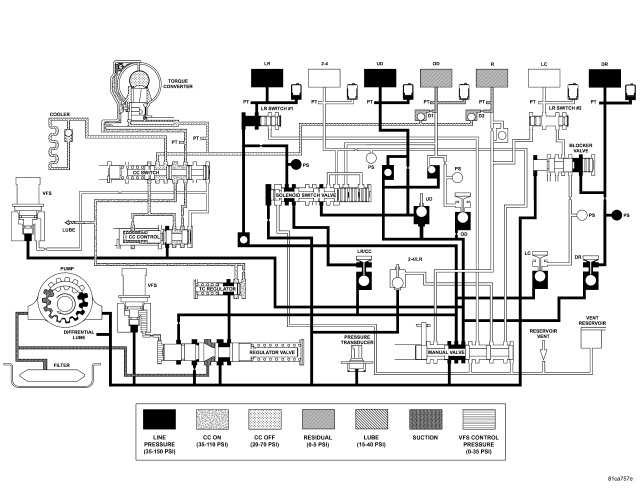

Schematics And Diagrams
Schematics And Diagrams

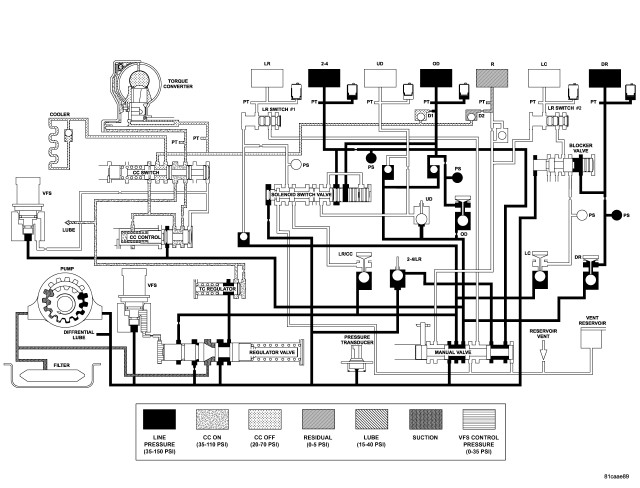

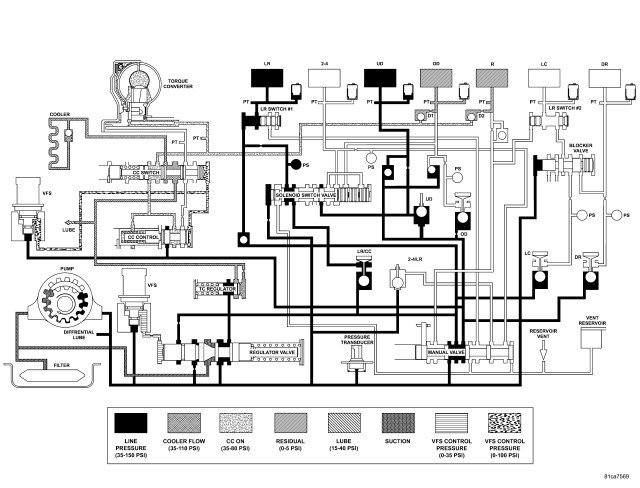

Courtesy of CHRYSLER GROUP, LLC

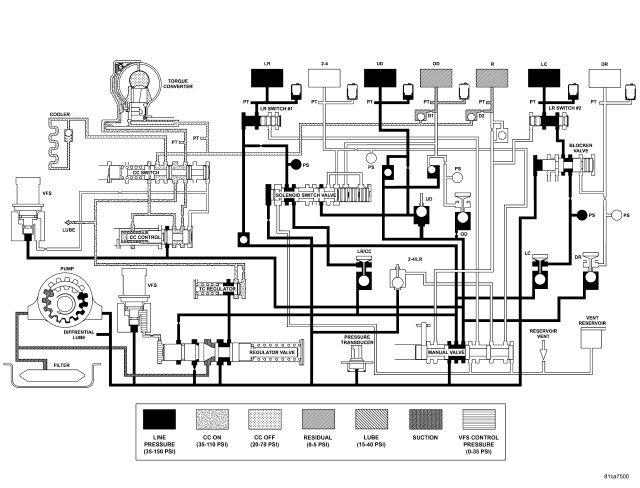

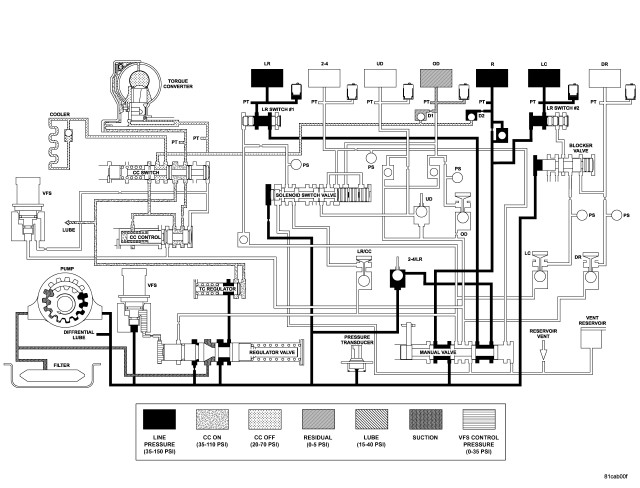

Courtesy of CHRYSLER GROUP, LLC

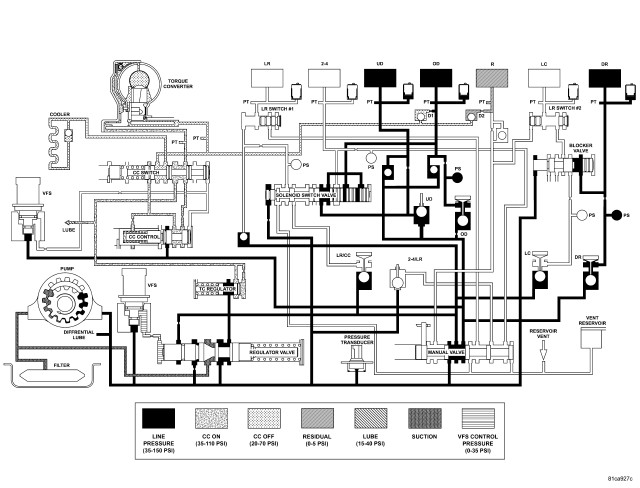

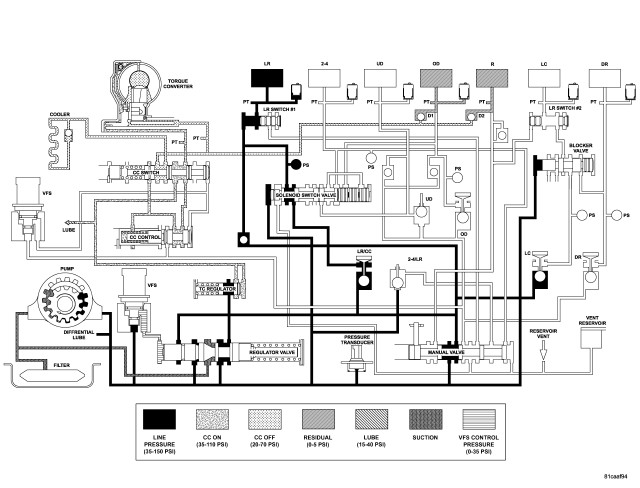

Courtesy of CHRYSLER GROUP, LLC

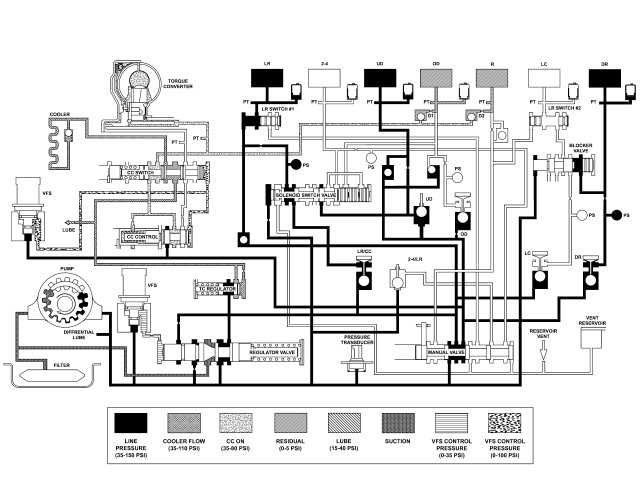

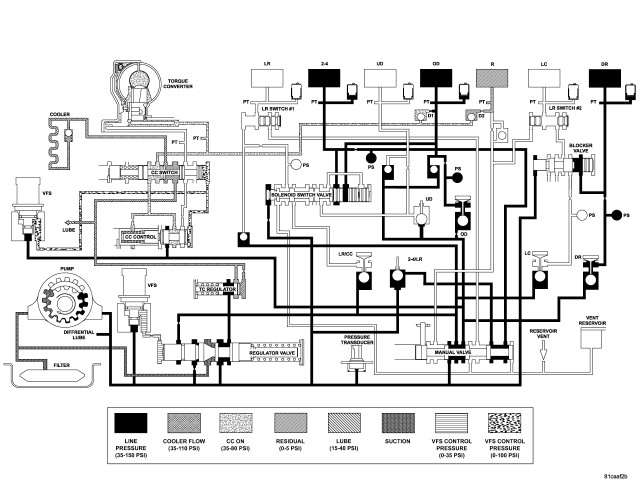

Courtesy of CHRYSLER GROUP, LLC

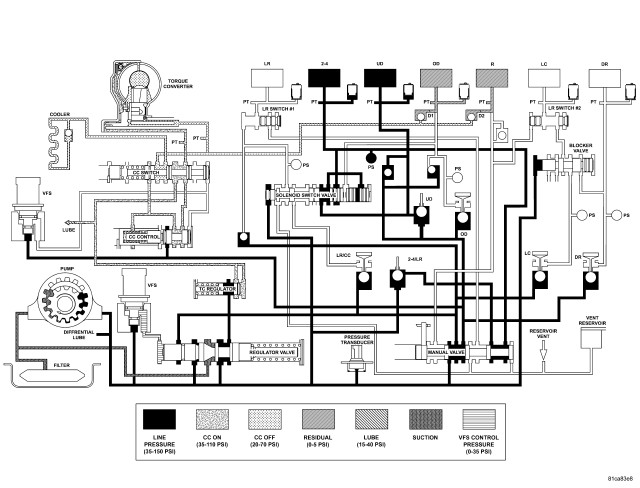

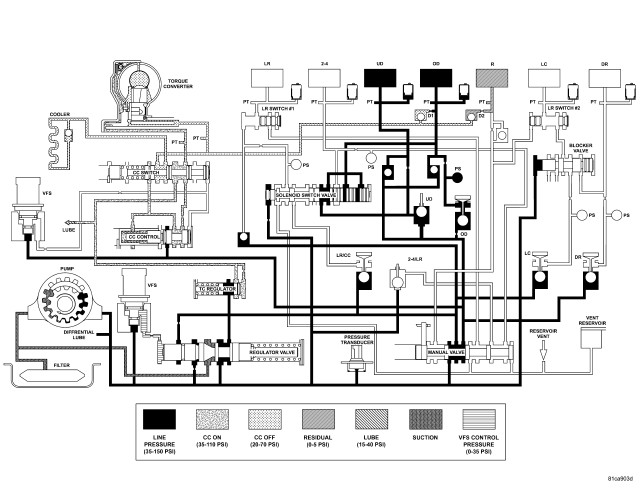

Courtesy of CHRYSLER GROUP, LLC

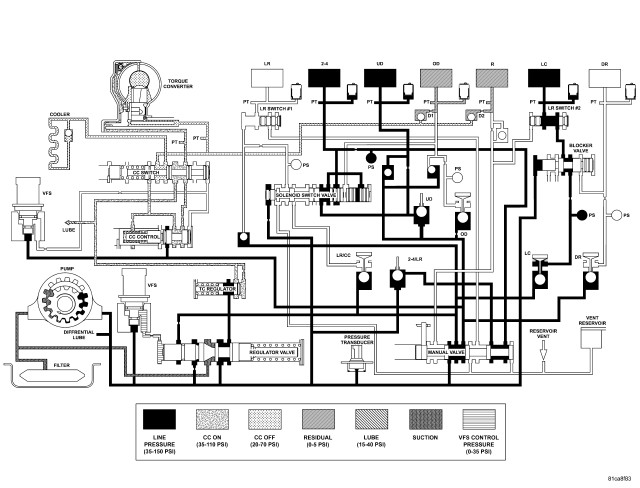

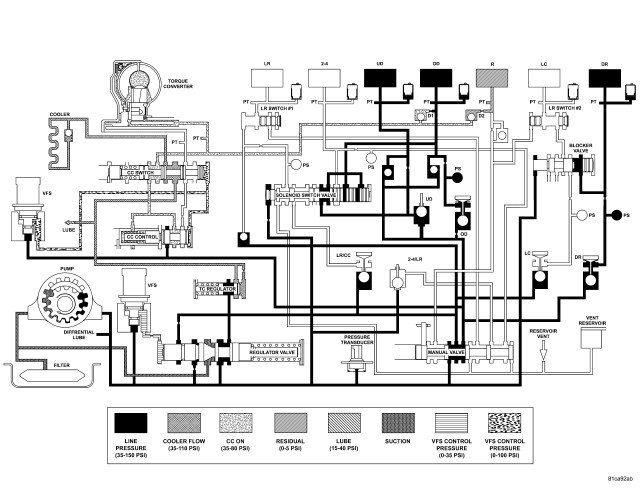

Courtesy of CHRYSLER GROUP, LLC

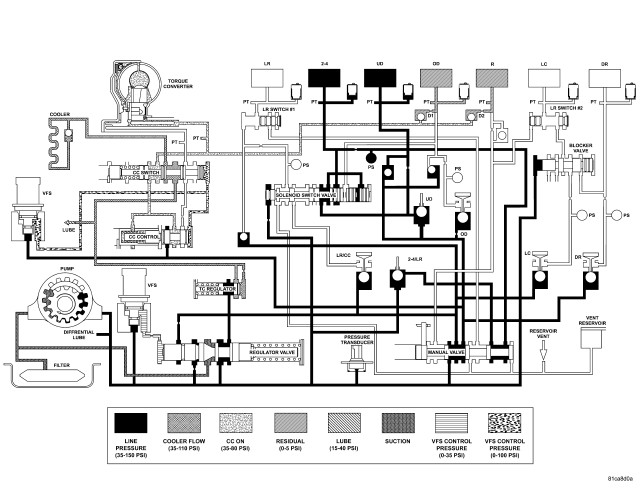

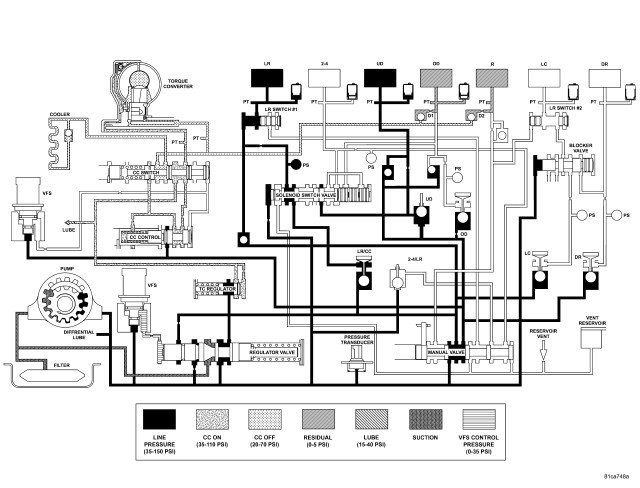

Courtesy of CHRYSLER GROUP, LLC

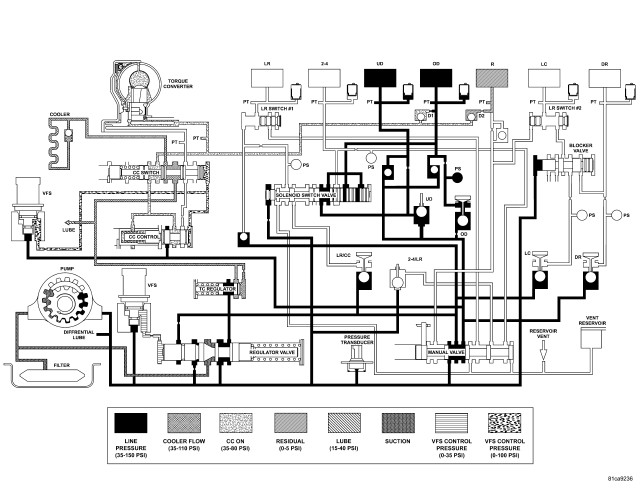

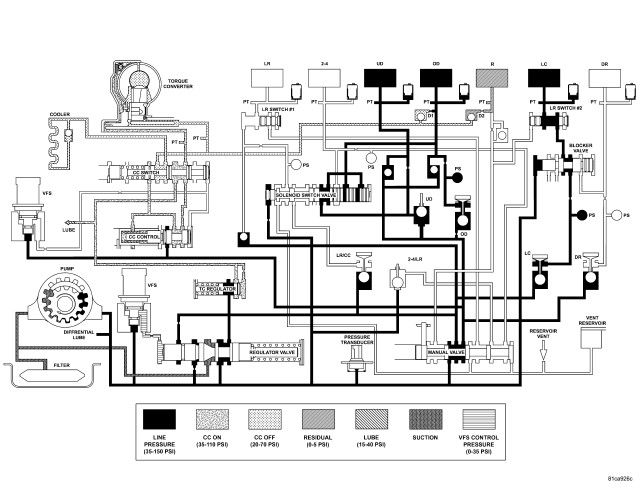

Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
