GEARTRAIN, Planetary: Description

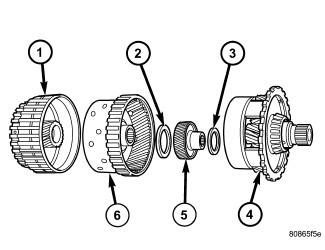

PLANETARY GEARTRAIN
| 1. | FRONT SUN GEAR ASSEMBLY |
| 2. | #6 THRUST BEARING |
| 3. | #7 THRUST BEARING |
| 4. | REAR CARRIER/FRONT ANNULUS ASSEMBLY |
| 5. | REAR SUN GEAR |
| 6. | FRONT CARRIER/REAR ANNULUS ASSEMBLY |
The planetary geartrain is located between the input clutch assembly and the rear of the transaxle case. The planetary geartrain consists of two sun gears (1, 5), two planetary carriers, two annulus (ring) gears (4, 6), and one output shaft.
