Sensor, Air Temperature, Outlet: Installation

GC0161929Courtesy of CHRYSLER GROUP, LLC
  1. Inspect the outlet air temperature sensor sealing washer (1) and replace if necessary.
    GC0162116Courtesy of CHRYSLER GROUP, LLC
  2. Install the outlet air temperature sensor (2) and securely tighten.

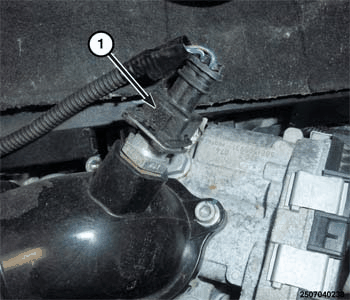

    GC0161808Courtesy of CHRYSLER GROUP, LLC
  3. Connect the outlet air temperature sensor wire harness connector (1).
  4. Connect the negative battery cable.
