Pedal, Accelerator: Installation

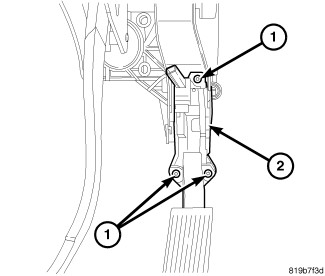

GC0124466Courtesy of CHRYSLER GROUP, LLC
  1. Install accelerator pedal assembly (2) to the pedal module.
  2. Install accelerator pedal mounting bolts (1) and tighten to 12 N.m (106 in. lbs.).
  3. Connect electrical connector.
  4. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
  5. Use a scan tool and select the ETC RELEARN function to relearn the APPS values.
