Switch, Inertia: Installation

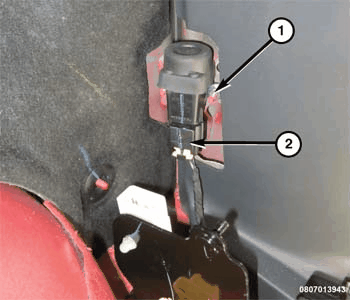

GC0160172Courtesy of CHRYSLER GROUP, LLC
  1. Position the inertia switch onto the studs. Tighten the nuts (1) to 4 N.m (35 in. lbs.).
  2. Reconnect the electrical connector (2).

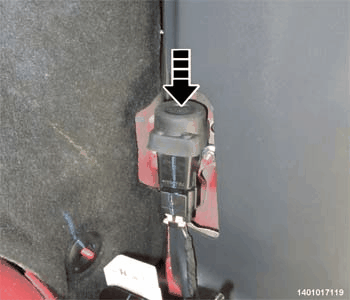

    GC0160404Courtesy of CHRYSLER GROUP, LLC
  3. If required, reset the inertia switch.
