Pump, Transmission Oil: Assembly

GC0147218Courtesy of CHRYSLER GROUP, LLC

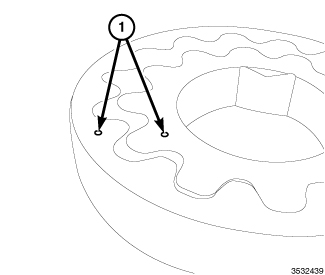

  1. Be certain the two dimples (1) on the side of the pump gears are facing up upon reassembly.
    GC0122771Courtesy of CHRYSLER GROUP, LLC

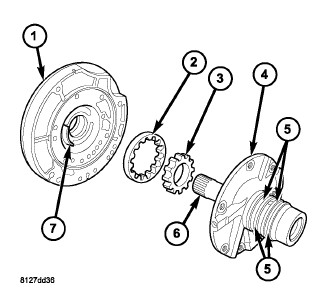

  2. Place the inner gear (3) and outer gear (2) in the oil pump housing (1).
    GC0122772Courtesy of CHRYSLER GROUP, LLC

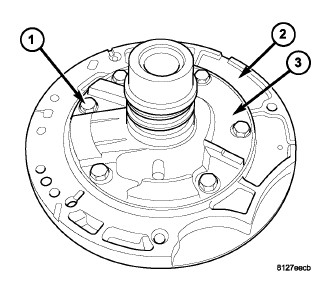

  3. Install and tighten reaction shaft support-to-oil pump housing bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
