Holding Clutches: Description

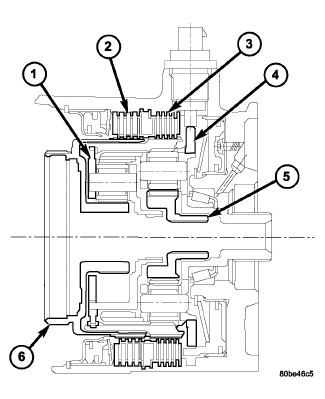

| 1 - FRONT PLANET CARRIER/REAR ANNULUS |
| 2 - 2/4 CLUTCH |
| 3 - L/R CLUTCH |
| 4 - REAR PLANET CARRIER/FRONT ANNULUS |
| 5 - REAR SUN GEAR |
| 6 - FRONT SUN GEAR ASSEMBLY |
Two hydraulically applied multi-disc clutches are used to hold planetary geartrain components (1, 4) stationary while the input clutches drive others. The 2/4 (2) and Low/Reverse (3) clutches are considered holding clutches and are contained at the rear of the transaxle case.
