Pipe, Exhaust CROSSUNDER: Removal

  1. Disconnect the negative battery.
  2. Raise the vehicle.
  3. If equipped, remove lower belly pan.
    GC0160233Courtesy of CHRYSLER GROUP, LLC
  4. Remove the front flange (4) nuts from the flange studs.
    GC0160311Courtesy of CHRYSLER GROUP, LLC
  5. Remove the rear flange nuts (3).
    GC0160190Courtesy of CHRYSLER GROUP, LLC
  6. Remove the two cross-under support (2) bolts.
  7. Remove the front muffler/resonator pipe grommet (4).
  8. Using a jack or suitable stand. Position the stand under the muffler piping to help support and aid in removal from the cross-under pipe.
  9. Remove the cross-under pipe (4) from vehicle and discard gaskets.

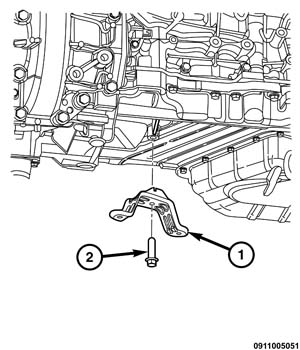

    GC0160348Courtesy of CHRYSLER GROUP, LLC
  10. If required, remove the cross under support bracket (1).
