Relay, Starter: Installation

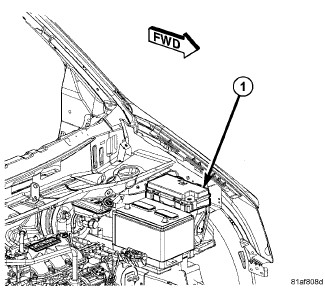

GC0124623Courtesy of CHRYSLER GROUP, LLC
  1. Refer to CENTER, POWER DISTRIBUTION (PDC) (1) cover for starter relay location.
  2. Install the relay to the PDC.
  3. Install the PDC cover.
