Sensor, Engine Coolant Temperature: Installation: 2.4L

Courtesy of CHRYSLER GROUP, LLC

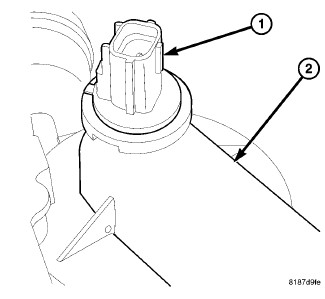

1 - ETC

2 - COOLANT ADAPTER

1. Install the ECT Sensor (1). Make sure coolant sensor is locked in place
2. Reconnect ECT Sensor electrical connector.
3. Fill cooling system. Refer to STANDARD PROCEDURE .
4. Connect negative battery cable.
