Radiator, Engine Cooling: Installation: Gas
- Be sure the air seal is in position before radiator is installed. Slide the radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 10 lbs. force.
- Engage the radiator retaining tabs.
- Position the air conditioning condenser onto the radiator lower mounts and engage the upper mounting tabs.

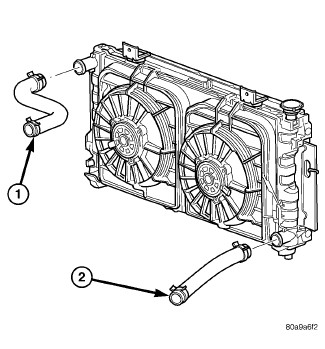

- Install the upper (1) and lower (2) radiator hoses.
- Install the radiator fan. Refer to FAN, COOLING, INSTALLATION .
- Install the screw (5) that secures the condenser tapping block to the radiator.
- Remove the tape or plugs from the opened refrigerant line fittings and condenser ports.
- Lubricate NEW O-ring seals with clean refrigerant oil and install them and NEW gaskets onto the opened refrigerant line fittings. Use only the specified O-rings as they are made of a special material for the system. Use only refrigerant oil of the type recommended for the A/C compressor in the vehicle.

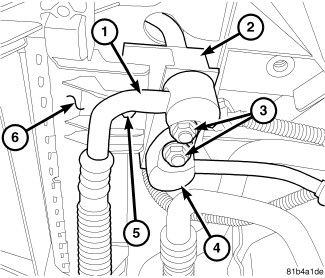

- Connect the A/C discharge line (1) and the A/C liquid line (4) to the condenser tapping block.
- Install the nuts (3) that secure the A/C discharge and liquid lines to the condenser tapping block. Tighten the nuts to 23 Nm (17 ft. lbs.).
- Install the radiator upper crossmember support. Refer to CROSSMEMBER, RADIATOR, INSTALLATION .
- Connect the coolant recovery bottle. Refer to BOTTLE, COOLANT RECOVERY, INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect the negative battery cable.
- Charge the refrigerant system. Refer to PLUMBING, FRONT, STANDARD PROCEDURE .
