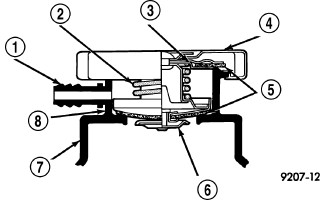

Cap, Radiator: Description
| 1 - OVERFLOW NIPPLE |
| 2 - MAIN SPRING |
| 3 - GASKET RETAINER |
| 4 - STAINLESS-STEEL SWIVEL TOP |
| 5 - RUBBER SEALS |
| 6 - VENT VALVE |
| 7 - RADIATOR |
| 8 - FILLER NECK |
The cooling system pressure cap is located on filler neck (8) of the radiator (7). The cap construction includes; a stainless steel swivel top (4), rubber seals (5), gasket retainer (3), main spring (2), and a spring loaded vent valve (6).
