Shaft, Intermediate: Installation

Courtesy of CHRYSLER GROUP, LLC

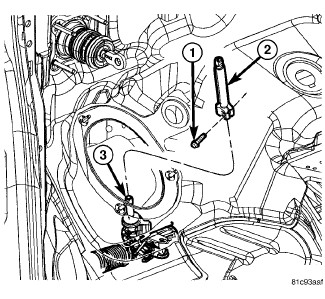

Match intermediate shaft extension (2) to steering gear shaft (3), then slide extension onto shaft.
Install pinch bolt (1) securing intermediate shaft extension (2) to steering gear shaft (3). Tighten pinch bolt to 42 N.m (31 ft. lbs.).
Lower vehicle.

Courtesy of CHRYSLER GROUP, LLC

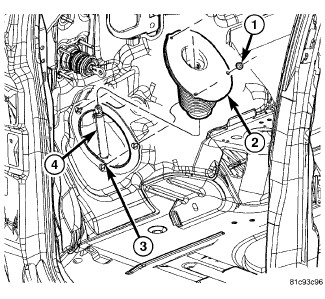

Place shaft seal and cover (2) over mounting studs on floor pan and securely install fasteners. Make sure cover extends down over top of steering gear housing.

Courtesy of CHRYSLER GROUP, LLC
Verify the front wheels of vehicle are in the STRAIGHT-AHEAD position.
Collapse the intermediate shaft (2). Center it over the shaft extension (3), lining up the ends, then slide the intermediate shaft onto the shaft extension.
Install the intermediate shaft coupling bolt (1). Tighten the bolt to 42 N.m (31 ft. lbs.).
Reposition the floor carpet in place.

Courtesy of CHRYSLER GROUP, LLC

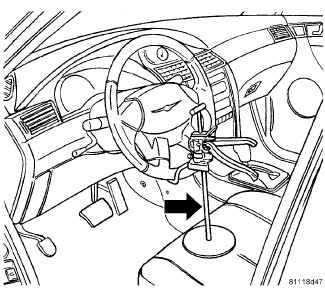

Remove steering wheel holder.
Road test vehicle to ensure proper operation of steering.
