Steering System: Pump: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Before installing power steering pressure hose on power steering pump, replace O-ring on end of power steering pressure hose. Lubricate O-ring using clean power steering fluid.

Install power steering pump (1) to its mounting bracket.

Courtesy of CHRYSLER GROUP, LLC

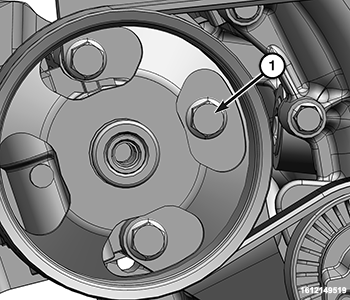

Install the three pump mounting bolts through pulley. Tighten pump mounting bolts to 23 Nm (17 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install power steering pump pressure fitting (2) and tighten to 31 Nm (23 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Slide fluid supply hose onto pump (3) fitting and install clamp (1) securing it in place.

Courtesy of CHRYSLER GROUP, LLC
Install heat shield (1) and secure with 3 mounting bolts (2). Tighten bolts to 25 Nm (18 ft. lbs.)
Lower vehicle.
Install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
Connect negative (-) battery cable on negative battery post.
Fill and bleed power steering system. Refer to STANDARD PROCEDURE .
Inspect for leaks.
