Shield, Heat: Installation

Courtesy of CHRYSLER GROUP, LLC

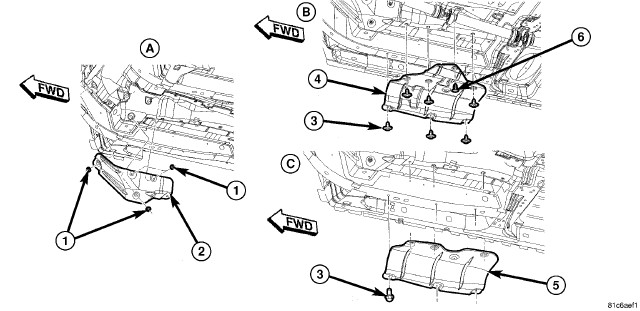

1 - NUT

4 - RETAINER

2 - 2nd ROW TUB HEAT SHIELD

5 - MUFFLER HEAT SHIELD

3 - 2nd ROW FLOOR TUB HEAT SHIELD

6 - KICK UP HEAT SHIELD

Position heat shield(s) to underbody.
Install heat shield fasteners and tighten to 3 N.m (27 in. lbs.).
Lower vehicle.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
