Switch-Passenger Door

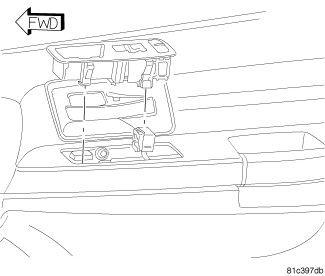

GC0124817Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connectors and install the switch.
  2. Firmly snap the switch assembly into the door trim panel.
  3. Connect the battery negative cable.
