Mp2010 Transfer Case (Service Information): Description

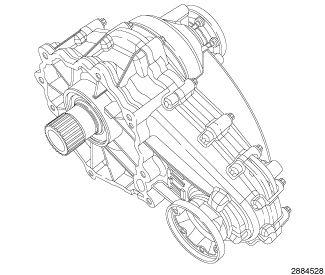

The ITC (Integrated Transfer Case, MP2010) is a single-speed transfer case. It provides convenient full-time 4-wheel drive. The transfer case operates with an open center differential dividing engine torque 50 percent torque to the front axle and 50 of torque to the rear axle. The Brake Traction Control System, which combines standard ABS and Traction Control, provides resistance to any wheel that is slipping to allow additional torque transfer to wheels with traction.
The MP2010 single-speed transfer case provides the following benefits:
- No shift lever or driver interaction required.
- Full-time 4-wheel drive provides smooth operation and vehicle stability under all conditions because torque is constantly being transferred.
- Torque distribution provides traction to maintain forward motion under most conditions.
- The Brake Traction Control System (BTCS) works in tandem with full-time 4 wheel drive. BTCS provides resistance to any wheel that is slipping to allow additional torque transfer to wheels with traction.
- Robust design and improved sealing enhance reliability.
- No maintenance required.
