Removal And Installation: Installation

  1. Install the power steering pulley to the power steering pump.
  2. Position the power steering rear bracket to the power steering pump and install the center bolt.
  3. Position power steering pump in the vehicle.
  4. Install the three power steering pump mounting bolts through the power steering pump pulley. Tighten the power steering pump mounting bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0184093Courtesy of CHRYSLER GROUP, LLC

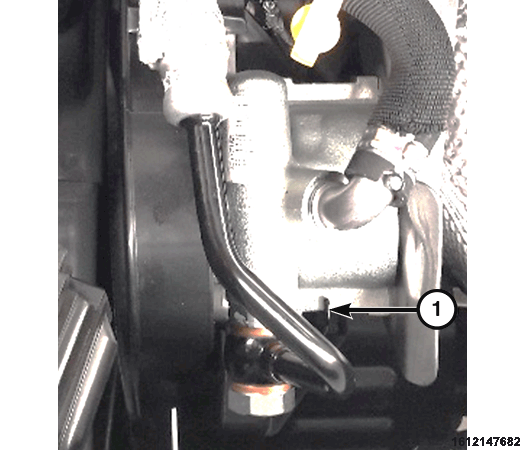

  5. Vehicles equipped with the alignment tab (1) must have the steering gear bolt tightened with the alignment tab (1) engaged as shown in illustration.
    GC0184092Courtesy of CHRYSLER GROUP, LLC

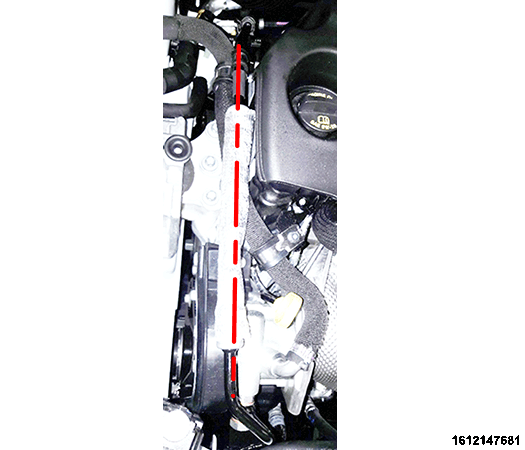

  6. Vehicles not equipped with the alignment tab MUST  have the steering gear bolt tightened with the power steering hose parallel to the motor as shown in illustration.
    GC0171851Courtesy of CHRYSLER GROUP, LLC

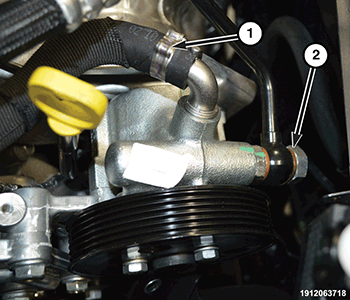

  7. Using NEW  washers, install the power steering pump pressure line (2). Tighten the power steering pump pressure line to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  8. Install a NEW  clamp, then slide the supply hose onto the power steering pump fitting (1).
  9. Install the accessory drive belt on the power steering pump pulley.
    GC0171824Courtesy of CHRYSLER GROUP, LLC

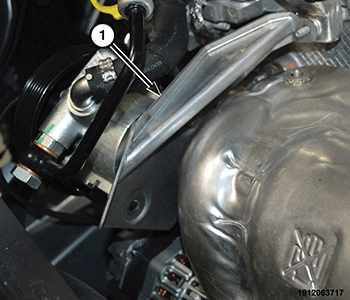

  10. Install the power steering rear bracket nut and the power steering rear bracket bolt (1).
  11. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  12. Install the air cleaner assembly. Refer to:REMOVAL AND INSTALLATION .
  13. Fill the power steering fluid reservoir.
    NOTE:

    The power steering hydraulic system bleeds automatically while the engine is running. The flow of fluid in the hydraulic system causes the level in the reservoir to go down. After a service procedure has been carried out, a small amount of air may remain in the system. A small amount of air does not have any negative repercussions as the system continues to be bled while driving. To manually bleed the hydraulic system:

    • Start the engine 3 times and stop each time after 5 seconds.
    • Pause briefly between each start.
    • Start up the engine, turn the steering wheel from lock to lock 5 times, then turn the off the engine.
    • Add fluid as necessary, top up the hydraulic system with the prescribed oil.
  14. Inspect for leaks.
