Sensor, Transmission Range: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the valve body. Refer to VALVE BODY, REMOVAL .
Remove the park rod assembly (2) from the Transmission Range Sensor (TRS)/rooster comb (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the set screw (1) with an allen wrench (3) at manual lever (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the roll pin (3) at the TRS/rooster comb (1) using a pin punch (2).

Courtesy of CHRYSLER GROUP, LLC
Remove the manual lever (2) from case and inspect the bushing (3).

Courtesy of CHRYSLER GROUP, LLC
Remove the TRS/rooster comb (1, 2) from the case.

Courtesy of CHRYSLER GROUP, LLC

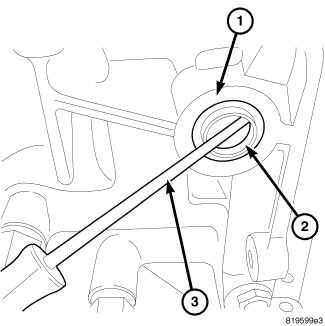

Remove the manual lever seal (2).
